Texas Instruments provides a recommended PCB layout in the AMC130M03DFMR evaluation module user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The AMC130M03DFMR does not require calibration, as it is a pre-calibrated device. However, it is recommended to follow the application guidelines and layout recommendations to ensure optimal performance. Additionally, the device can be calibrated using an external calibration signal, but this is typically not necessary.
The AMC130M03DFMR is rated for operation from -40°C to 125°C, but it can be derated for operation up to 150°C with reduced accuracy and reliability. It is recommended to consult the datasheet and application notes for more information on operating temperature range and derating.
Yes, the AMC130M03DFMR can be used in a multi-channel configuration, but it requires an external multiplexer or analog switch to select the input channels. Texas Instruments provides application notes and reference designs for multi-channel configurations.
Texas Instruments recommends using a 10-uF ceramic capacitor and a 1-uF ceramic capacitor in parallel, placed as close as possible to the power supply pins of the AMC130M03DFMR, to ensure proper power supply decoupling and noise reduction.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC130M03DFMR Overview

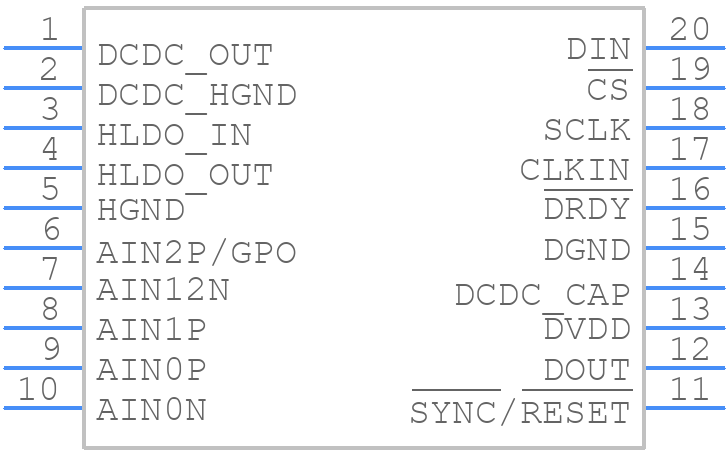

Use the download button to access the AMC130M03DFMR schematic symbol, PCB footprint, and 3D model.
