AMC131M03DFMR - Texas Instruments

Description: Analog to Digital Converters - ADC Three-channel simul taneous-sampling 24-

Download AMC131M03DFMR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

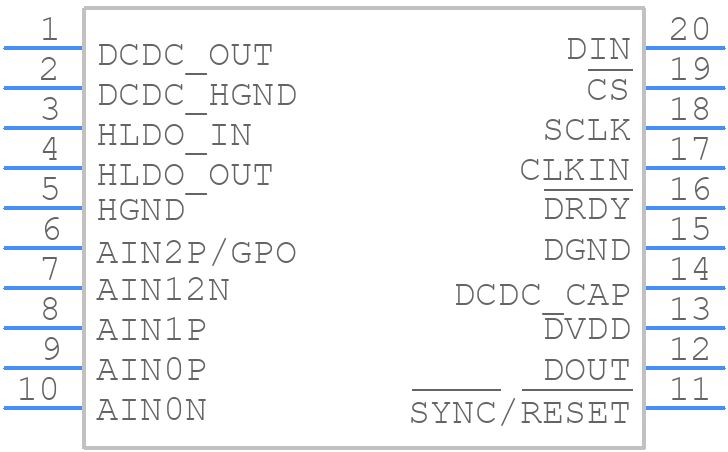

AMC131M03DFMR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC131M03DFMR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - AMC131M02DFMR
click to zoom
3D Models
AMC131M03DFMR - Texas Instruments - 3D model - Small Outline Packages - AMC131M02DFMR
click to zoom

AMC131M03DFMR Details

  • Manufacturer Part Number:

    AMC131M03DFMR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    1.2 V

  • Analog Input Voltage-Min:

    -1.2 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.83 mm

  • Linearity Error-Max (EL):

    0.0006%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    3

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.064 MHz

  • Seated Height-Max:

    3.55 mm

  • Supply Current-Max:

    24 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AMC131M03DFMR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the AMC131M03DFMR evaluation module user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The AMC131M03DFMR can be configured for different input voltage ranges by adjusting the gain settings and using external resistors to set the input voltage range. The device also has a built-in voltage reference that can be used to set the input voltage range.
  • The maximum sampling rate of the AMC131M03DFMR is 1 MSPS, and it is affected by the input signal frequency. The device can sample input signals up to 1 MHz, but the sampling rate may need to be reduced for higher frequency input signals to ensure accurate conversion.
  • The AMC131M03DFMR can be calibrated using an external calibration signal and the device's built-in calibration registers. The calibration process involves applying a known input signal and adjusting the device's gain and offset settings to match the expected output.
  • The power consumption of the AMC131M03DFMR is typically around 15 mW, but it can be minimized by reducing the sampling rate, using the device's power-down mode, and optimizing the PCB layout to reduce power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AMC131M03DFMR Overview

Use the download button to access the AMC131M03DFMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
