Texas Instruments provides a recommended PCB layout in the AMC131M03QDFMRQ1 evaluation module user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The AMC131M03QDFMRQ1 has a programmable input voltage range, which can be configured using the SPI interface. The device has multiple input voltage ranges, and the specific configuration depends on the application requirements. Refer to the AMC131M03QDFMRQ1 datasheet and programming guide for more information.
The AMC131M03QDFMRQ1 has an operating temperature range of -40°C to 125°C, making it suitable for industrial and automotive applications. However, the device's performance may vary at extreme temperatures, and it's essential to consider thermal management in the system design.
To ensure EMC with the AMC131M03QDFMRQ1, follow proper PCB design and layout guidelines, use shielding and filtering techniques, and consider the device's electromagnetic emissions and susceptibility. Texas Instruments provides EMC guidelines and recommendations in the AMC131M03QDFMRQ1 datasheet and application notes.
The typical power consumption of the AMC131M03QDFMRQ1 depends on the operating mode, input voltage, and output configuration. According to the datasheet, the typical power consumption is around 12.5 mW at 3.3 V supply voltage and 10 MSPS output data rate. However, this value may vary depending on the specific application and usage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC131M03QDFMRQ1 Overview

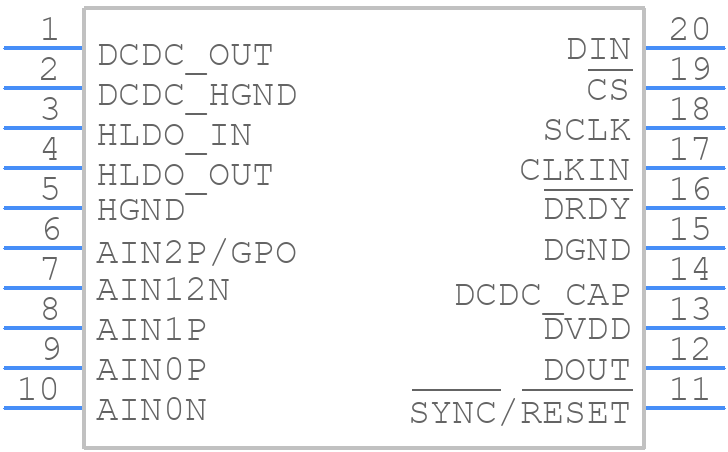

Use the download button to access the AMC131M03QDFMRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13,
or try a keyword search, such as Analog to Digital Converters
