AMC3301DWER - Texas Instruments

Description: Isolation Amplifiers ±250-mV input, precision reinforced isolated amplifier with integrated DC/DC converter 16-SOIC -40 to 125

Download AMC3301DWER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

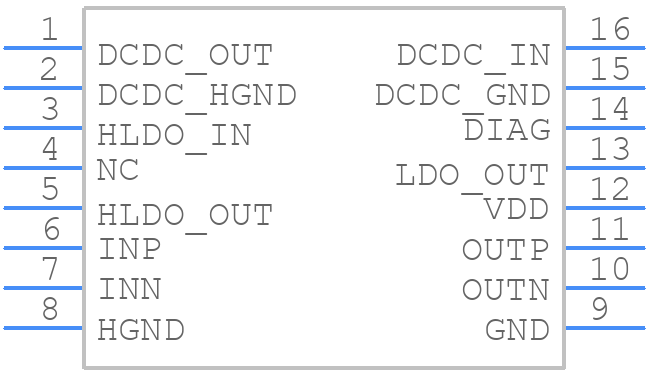

Symbol
AMC3301DWER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC3301DWER - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DWE0016A
click to zoom
3D Models
AMC3301DWER - Texas Instruments - 3D model - Small Outline Packages - DWE0016A
click to zoom

AMC3301DWER Details

  • Manufacturer Part Number:

    AMC3301DWER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2019-08-29

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    ISOLATION AMPLIFIER

  • Analog Input Voltage-Max:

    0.25 V

  • Analog Input Voltage-Min:

    -0.25 V

  • Bandwidth (3dB)-Nom:

    0.334 MHz

  • Common Mode Voltage-Max:

    1 V

  • Input Offset Voltage-Max:

    150 µV

  • Isolation Voltage-Min:

    1200 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Non-linearity-Max:

    0.04%

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    42 mA

  • Supply Voltage Limit-Max:

    6.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    0.334

  • Width:

    7.5 mm

AMC3301DWER Frequently Asked Questions (FAQs)

  • A good PCB layout for the AMC3301DWER involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals.
  • The AMC3301DWER requires a calibration process to ensure accurate measurements. This involves applying a known input voltage and adjusting the internal calibration registers to match the expected output. The calibration process is typically done during the manufacturing process, but it's recommended to recalibrate the device periodically to maintain accuracy.
  • The recommended input voltage range for the AMC3301DWER is 0 to 5V. Operating the device outside of this range can affect its accuracy and linearity. It's recommended to use a voltage regulator to ensure a stable input voltage within the recommended range.
  • The AMC3301DWER has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage from voltage transients. The OVP circuit limits the input voltage to 6.5V, while the UVP circuit disables the device when the input voltage falls below 2.5V.
  • The typical power consumption of the AMC3301DWER is around 10mA. To minimize power consumption, it's recommended to use a low-power mode when the device is not in use, reduce the clock frequency, and use a low-dropout voltage regulator to minimize power losses.
