Description:Analog to Digital Converters - ADC High-precision, +/-50-mV input, reinforced isolated modulator with integrated DC/DC converter 16-SOIC -40 to 125
A good PCB layout for the AMC3306M05DWER involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The AMC3306M05DWER requires a single 5V power supply. It's recommended to use a low-dropout linear regulator (LDO) to power the device. The power sequencing requirement is to power up the device after the power supply has stabilized, and to ensure that the power supply is within the recommended operating range.
The recommended operating temperature range for the AMC3306M05DWER is -40°C to 125°C. Temperature affects the device's performance, with increased temperature resulting in increased offset voltage and decreased bandwidth. It's recommended to operate the device within the specified temperature range to ensure optimal performance.
The AMC3306M05DWER requires proper configuration of the gain, bandwidth, and output voltage range to optimize its performance. It's recommended to consult the datasheet and application notes for specific configuration guidelines, and to use the device's evaluation module (EVM) to test and optimize the configuration for the specific application.
The AMC3306M05DWER is susceptible to electromagnetic interference (EMI) and radio-frequency interference (RFI). To minimize EMI and RFI, it's recommended to use a shielded enclosure, keep the device away from high-frequency sources, and use a low-pass filter on the output.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC3306M05DWER Overview

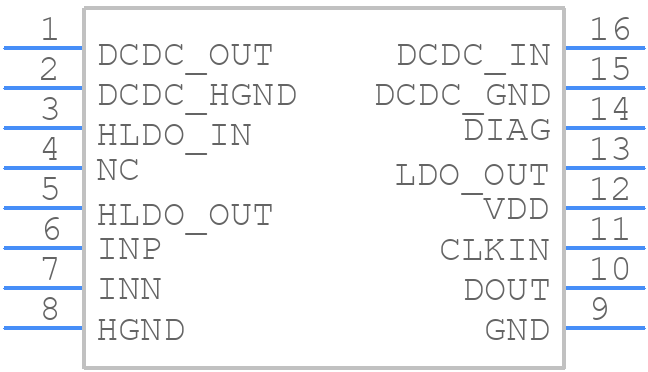

Use the download button to access the AMC3306M05DWER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC33,
or try a keyword search, such as Analog to Digital Converters
