- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AMC3330DWE
- Part Number AMC3330DWE
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - DWE0016A
- Released Date Nov 26, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AMC3330DWE Details
-
Manufacturer Part Number:
AMC3330DWE
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Date Of Intro:
2020-11-12
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
AMC3330DWE Frequently Asked Questions (FAQs)
-
A good PCB layout for the AMC3330DWE involves separating the analog and digital grounds, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure proper configuration, refer to the AMC3330DWE datasheet and application notes. Configure the device using the recommended settings for your specific application, such as selecting the correct gain and bandwidth settings. You can also use TI's WEBENCH online design tool to help with configuration.
-
The AMC3330DWE has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink if the device will be operating in a high-temperature environment. Monitor the device's temperature using the internal temperature sensor or an external thermometer.
-
To troubleshoot issues with the AMC3330DWE, start by verifying the power supply voltage and ensuring it's within the recommended range. Check the input and output signals using an oscilloscope, and verify that the device is properly configured. Consult the datasheet and application notes for troubleshooting guides and FAQs.
-
To ensure EMI/EMC compliance, follow proper PCB layout and design practices, such as using a solid ground plane and separating analog and digital circuits. Use shielding and filtering as needed, and consult the datasheet and application notes for specific guidance on EMI/EMC considerations.
Trust Checks
Community Provided
System Verified
Community Approved
AMC3330DWE Overview

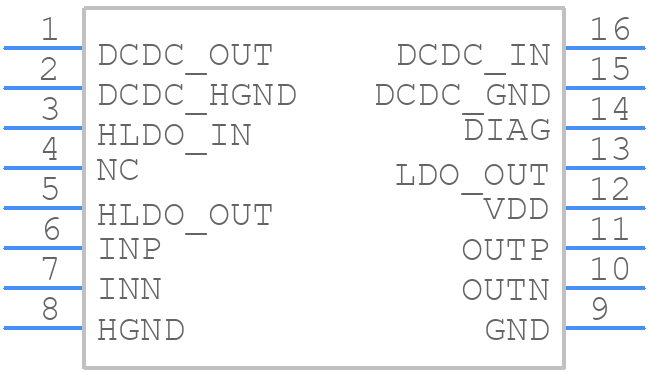

Use the download button to access the AMC3330DWE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC33,
or try a keyword search, such as Isolation Amplifiers
