A good PCB layout for the AMC3336DWER involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The AMC3336DWER requires a single 3.3V power supply. It's recommended to power the device using a low-noise, low-dropout regulator. The power sequencing requirement is to power up the device after the power supply has stabilized, and to ensure that the power supply is stable before enabling the device.
The recommended clocking scheme for the AMC3336DWER is to use a low-jitter clock source, such as a crystal oscillator or a high-quality clock generator. To minimize clock jitter, it's recommended to use a clock source with a jitter of less than 100 ps, and to use a clock distribution network with minimal skew and jitter.
To optimize the AMC3336DWER's performance, consider the specific requirements of your application, such as the signal frequency, amplitude, and noise tolerance. Key parameters to consider include the gain, bandwidth, and noise floor of the device. It's also important to consider the PCB layout, power supply, and clocking scheme to ensure optimal performance.
The AMC3336DWER has a recommended operating temperature range of -40°C to 125°C. To ensure the device operates within this range, consider the thermal design of the PCB, including the use of thermal vias, heat sinks, and thermal interfaces. It's also important to ensure good airflow and to avoid blocking airflow around the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC3336DWER Overview

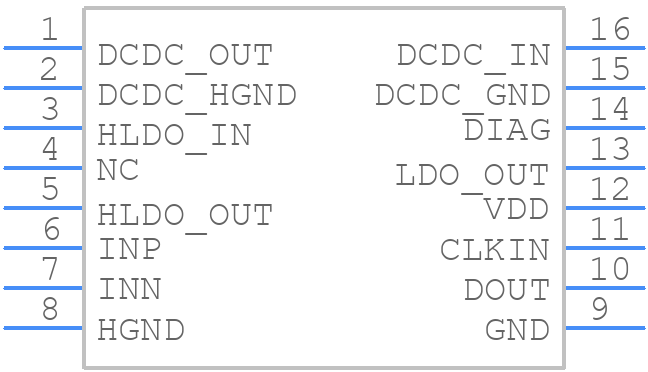

Use the download button to access the AMC3336DWER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC33,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
