Texas Instruments provides a recommended PCB layout in the AMC3336QDWERQ1 datasheet, but it's essential to follow good PCB design practices, such as separating analog and digital grounds, using a solid ground plane, and minimizing noise coupling. Additionally, TI offers a PCB layout guide (SLUUAC1) that provides more detailed recommendations.
To ensure accurate temperature measurement, it's crucial to follow proper thermal design practices, such as placing the device close to the heat source, using a thermally conductive material, and minimizing thermal gradients. Additionally, calibrate the device using the built-in calibration feature or an external calibration method.
The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage within the recommended operating range of 2.7V to 5.5V to ensure reliable operation and prevent damage to the device.
The AMC3336QDWERQ1 has a built-in POR and BOR feature to ensure reliable startup and operation. To handle these features, ensure that the power supply is stable and within the recommended operating range. Additionally, use an external reset circuit or a microcontroller to monitor the POR and BOR signals and take appropriate action, such as initializing the device or restarting the system.
The recommended clock frequency for the I2C interface is up to 400 kHz, but it can operate up to 1 MHz. However, it's essential to ensure that the clock frequency is within the recommended range to prevent data corruption and ensure reliable communication.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC3336QDWERQ1 Overview

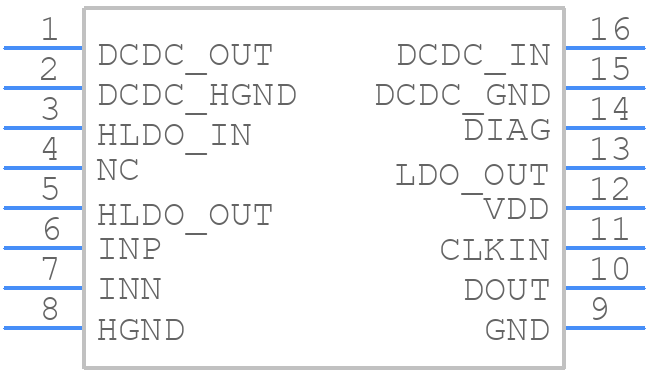

Use the download button to access the AMC3336QDWERQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC33,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
