AMC6821SDBQG4 - Texas Instruments

Description: Motor/Motion/Ignition Controllers & Drivers Temp Monitoring and Fan Ctrl

Download AMC6821SDBQG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

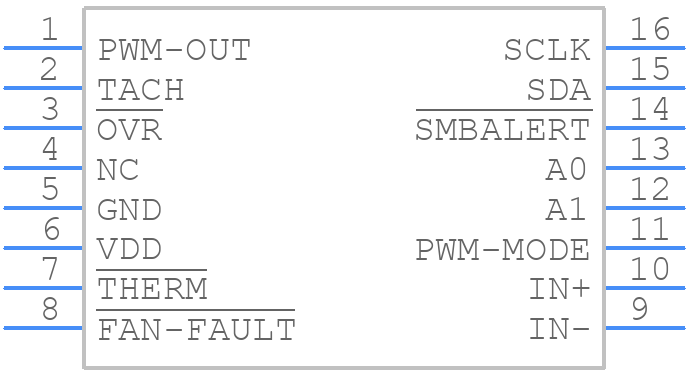

AMC6821SDBQG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC6821SDBQG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBQ0016A
click to zoom
3D Models
AMC6821SDBQG4 - Texas Instruments - 3D model - Small Outline Packages - DBQ0016A
click to zoom

AMC6821SDBQG4 Details

  • Manufacturer Part Number:

    AMC6821SDBQG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SSOP-16

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    2 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AMC6821SDBQG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the AMC6821SDBQG4 datasheet (Section 10.2) and in the AMC6821SDBQG4 Evaluation Module User's Guide. It's essential to follow these guidelines to ensure optimal thermal performance and minimize thermal resistance.
  • The input capacitor values depend on the input voltage, output voltage, and output current requirements. TI provides a capacitor selection guide in the AMC6821SDBQG4 datasheet (Section 7.3.1) and in the TI Power Management Guide. You can also use online capacitor selection tools or consult with TI's support team for specific guidance.
  • The AMC6821SDBQG4 is rated for operation up to 105°C ambient temperature. However, it's essential to consider the device's thermal performance, power dissipation, and cooling mechanisms to ensure reliable operation within the specified temperature range.
  • Yes, the AMC6821SDBQG4 is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, it's crucial to follow TI's guidelines for automotive applications, including specific testing and validation procedures.
  • TI provides troubleshooting guidelines in the AMC6821SDBQG4 datasheet (Section 11) and in the TI Power Management Guide. Common issues can be resolved by checking the PCB layout, input/output capacitor values, and component selection. You can also consult with TI's support team for specific guidance.
