AMC6821SDBQRG4 - Texas Instruments

Description: Motor/Motion/Ignition Controllers & Drivers Temp Monitoring and Fan Control

Download AMC6821SDBQRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

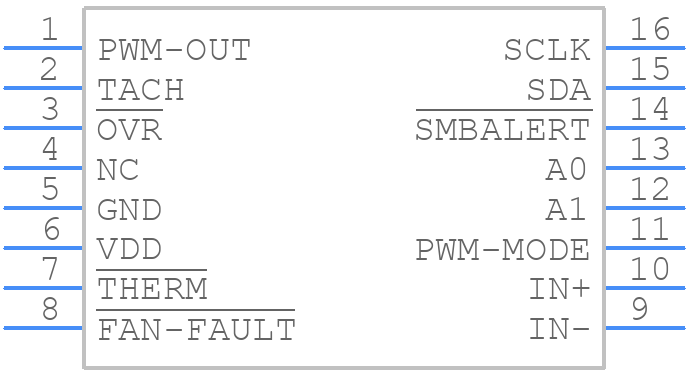

AMC6821SDBQRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC6821SDBQRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBQ0016A
click to zoom
3D Models
AMC6821SDBQRG4 - Texas Instruments - 3D model - Small Outline Packages - DBQ0016A
click to zoom

AMC6821SDBQRG4 Details

  • Manufacturer Part Number:

    AMC6821SDBQRG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SSOP-16

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    2 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AMC6821SDBQRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the AMC6821SDBQRG4 evaluation module documentation, which includes thermal vias and heat sink recommendations to ensure optimal thermal performance.
  • The AMC6821SDBQRG4 has a flexible voltage rail configuration. You can configure the device using the VCONFIG pin and the VCCIO pin to select the desired voltage rail. Refer to the datasheet for specific configuration options.
  • The maximum current draw for each output rail depends on the specific configuration and application. However, the AMC6821SDBQRG4 can deliver up to 3A per output rail. Refer to the datasheet for specific current ratings and thermal derating information.
  • The AMC6821SDBQRG4 has a built-in power sequencing feature that allows you to sequence the output rails. You can configure the sequencing using the SEQ pin and the EN pin. Refer to the datasheet for specific sequencing options and timing diagrams.
  • Texas Instruments recommends using a 10uF to 22uF ceramic capacitor with an X5R or X7R dielectric as the input capacitor. This ensures stable operation and minimizes noise and ripple.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AMC6821SDBQRG4 Overview

Use the download button to access the AMC6821SDBQRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC68, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
