AMIS-49250-XTP - onsemi

Description: All node power can be supplied by the bus, via the AMIS-492x0; Current consumption 500 uA (typ); VCC voltage: 6.2 V to 4.75 V; VDD voltage: 5.5 V to 2.7 V; Compatible with IEC 1158-2 and ISA 50.02; Shunt regulator; Voltage reference (internal only); Series regulator; Bandpass filter; Slew rate control; Segment current control; Low voltage detection; Carrier detect; Data rate: 31.25 kbps voltage mode; Dual voltage supply: 3.0 to 6.2 V

Download AMIS-49250-XTP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

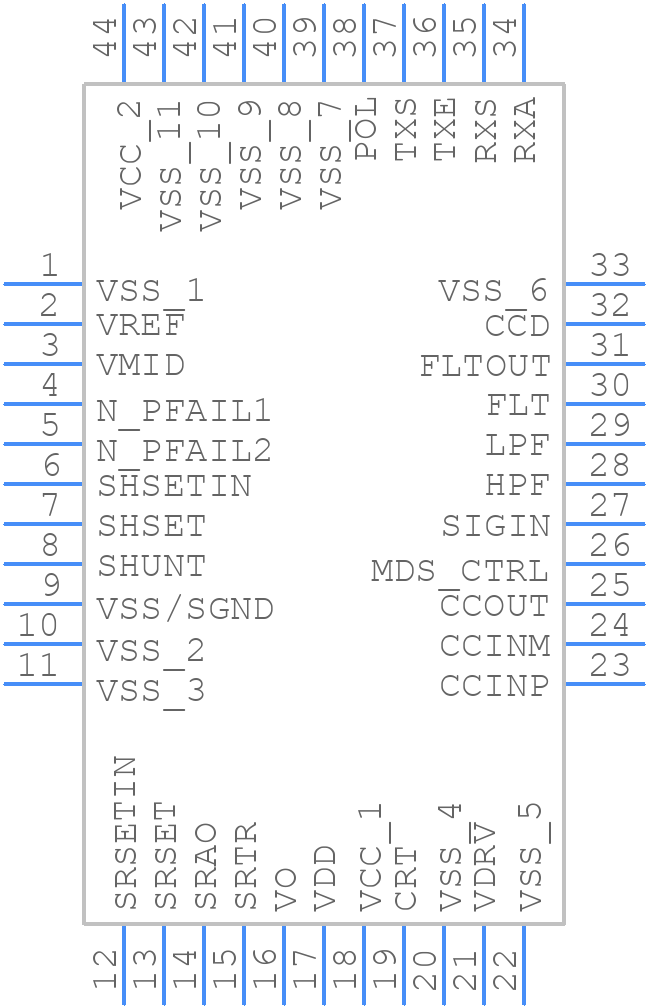

AMIS-49250-XTP - onsemi - PCB symbol
click to zoom
PCB Footprints
AMIS-49250-XTP - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LQFP−44
click to zoom
3D Models
AMIS-49250-XTP - onsemi - 3D model - Quad Flat No-Lead - LQFP−44
click to zoom

AMIS-49250-XTP Details

  • Manufacturer Part Number:

    AMIS-49250-XTP

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    NQFP 44, 7x7

  • Package Description:

    NQFP-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    560BK

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    42 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Data Rate:

    31 Mbps

  • JESD-30 Code:

    S-XQCC-N44

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC44,.28SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Current-Max:

    0.0008 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AMIS-49250-XTP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a 10uF capacitor between VCC and GND, and a 100nF capacitor between AVCC and AGND.
  • Use a shielded enclosure, keep the device away from high-frequency sources, and use a common-mode choke or ferrite bead on the power supply lines. Ensure that the PCB layout is optimized for EMC, and use a ground plane to reduce radiation.
  • The AMIS-49250-XTP is rated for operation from -40°C to 125°C. However, the device may not meet all specifications at the extreme temperatures. Consult the datasheet for specific temperature-related specifications.
  • Yes, the AMIS-49250-XTP is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is manufactured using a process that is compliant with IATF 16949.
  • Use a logic analyzer or oscilloscope to monitor the device's signals. Check the power supply voltage, clock frequency, and input signals. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AMIS-49250-XTP Overview

Use the download button to access the AMIS-49250-XTP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMIS-, or try a keyword search, such as Other Telecom ICs
