A good PCB layout for the AMIS30622C6227G involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the device to the power supply and other components.
To optimize the performance of the AMIS30622C6227G in a noisy environment, use a low-pass filter on the input signals, add a shield around the device, and use a ground plane to reduce electromagnetic interference (EMI).
The maximum operating temperature range for the AMIS30622C6227G is -40°C to 125°C, but it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
Yes, the AMIS30622C6227G is designed to operate in high-vibration environments, but it's recommended to follow proper mounting and soldering techniques to ensure the device is securely attached to the PCB.
To troubleshoot issues with the AMIS30622C6227G, check the power supply voltage, verify the input signals, and use an oscilloscope to monitor the output signals. Also, consult the datasheet and application notes for troubleshooting guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMIS30622C6227G Overview

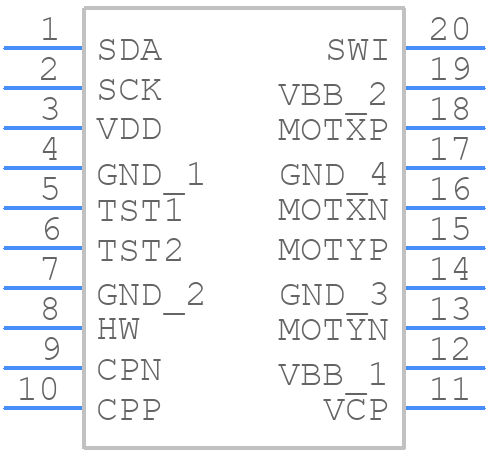

Use the download button to access the AMIS30622C6227G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMIS3,
or try a keyword search, such as Motion Control Electronics
