AMIS30622C6228G - onsemi

Description: Motor / Motion / Ignition Controllers & Drivers I2C 800mA MICRO STP

Download AMIS30622C6228G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

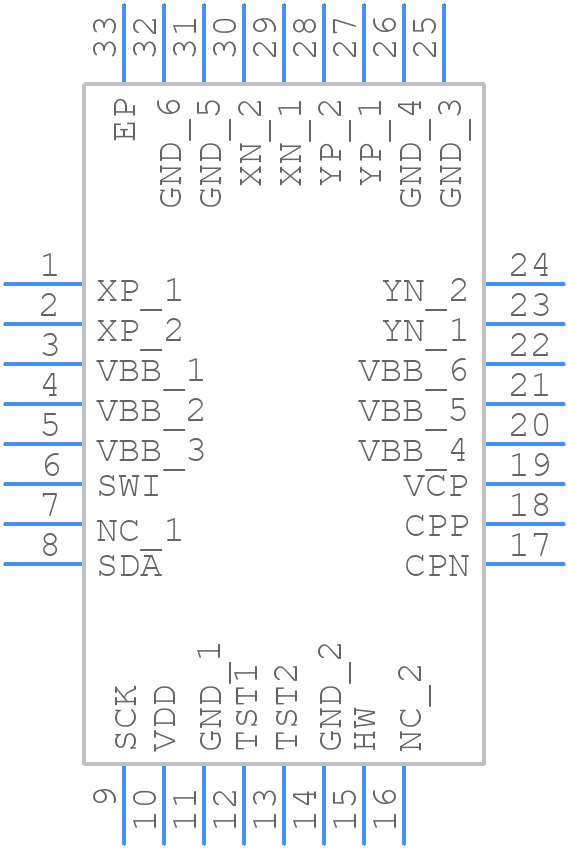

Symbol
AMIS30622C6228G - onsemi - PCB symbol
click to zoom
PCB Footprints
AMIS30622C6228G - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - AMIS30622C6228G
click to zoom
3D Models
AMIS30622C6228G - onsemi - 3D model - Quad Flat No-Lead - AMIS30622C6228G
click to zoom

AMIS30622C6228G Details

  • Manufacturer Part Number:

    AMIS30622C6228G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    7 X 7 MM, LEAD FREE, MO-220, NQFP-32

  • Pin Count:

    32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.8 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.27SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    29 V

  • Supply Voltage-Min (Vsup):

    6.5 V

  • Supply Voltage-Nom (Vsup):

    8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

AMIS30622C6228G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the AMIS30622C6228G can be found in the application note AND9173/D, which provides guidelines for layout, thermal management, and EMI reduction.
  • The AMIS30622C6228G is a highly configurable device, and the configuration depends on the specific application. Onsemi provides a software development kit (SDK) that includes a configuration tool and example code to help engineers configure the device for their specific use case.
  • The AMIS30622C6228G has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Engineers should ensure proper thermal management to prevent overheating and ensure reliable operation.
  • Onsemi provides a troubleshooting guide in the application note AND9174/D, which covers common issues and their solutions. Engineers can also contact onsemi's technical support team for assistance with troubleshooting and debugging.
  • Yes, the AMIS30622C6228G is AEC-Q100 qualified, which means it meets the requirements for automotive applications. However, engineers should ensure that the device is used within the specified operating conditions and follows the guidelines for automotive applications.
