Part Image

AMIS30624C6244G - onsemi

Description: --

Download AMIS30624C6244G Model

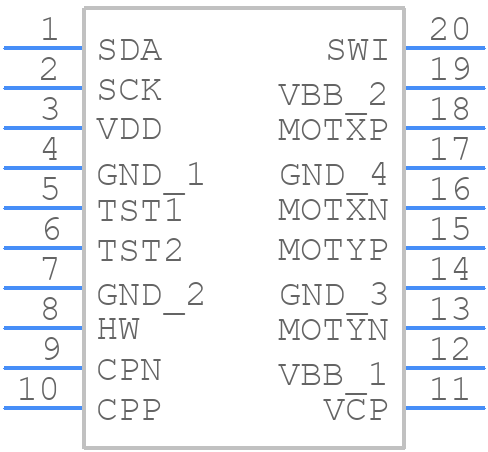

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AMIS30624C6244G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 20 W CASE 751AQ-01
click to zoom
3D Models
AMIS30624C6244G - onsemi  - 3D model - Small Outline Packages - SOIC 20 W CASE 751AQ-01
click to zoom

AMIS30624C6244G Details

  • Manufacturer Part Number:

    AMIS30624C6244G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    SOIC-20 Wide Body

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    751AQ

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    onsemi

  • Risk Rank:

    6.76

  • Additional Feature:

    ALSO NEEDS 4.75V TO 5.5V VDD SUPPLY

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.7762 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.6416 mm

  • Supply Voltage-Max (Vsup):

    29 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AMIS30624C6244G Overview

Use the download button to access the AMIS30624C6244G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMIS3, or try a keyword search, such as Motion Control Electronics

Parts related to AMIS30624C6244G

Showing 0 results

AMIS30624C6244G Alternates

Showing results

Image Part Number Model
Part Image AMIS30624C6244RG onsemi

Microstepping motor driver and controller with I2C bus and stall detection, SOIC-20 Wide Body, 1500-REEL
