A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure stable output voltage regulation, it's essential to follow the recommended input and output capacitor values and types, as well as to provide a stable input voltage. Additionally, the output voltage can be adjusted using the feedback resistors, and the device should be operated within the recommended operating conditions.
To prevent damage, it's recommended to handle the device by the body and not the pins, and to store the device in an anti-static bag or wrap. The device should be stored in a cool, dry place, away from direct sunlight and moisture.
The AP2141DFMG-7 is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. A heat sink or thermal pad may be required to ensure reliable operation.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component values to ensure they match the recommended values. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet or contact Diodes Incorporated's technical support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP2141DFMG-7 Overview

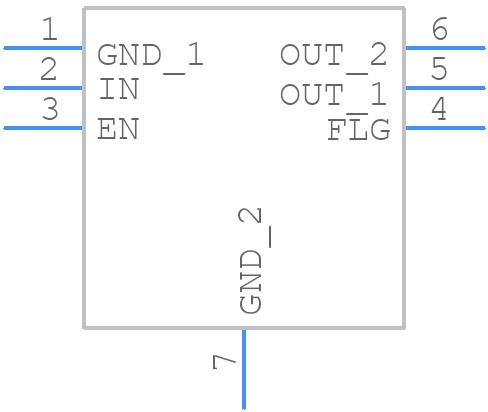

Use the download button to access the AP2141DFMG-7 schematic symbol, PCB footprint, and 3D model.
