AP2152AFGEG-7 footprint, schematic symbol and 3D model by Diodes Incorporated

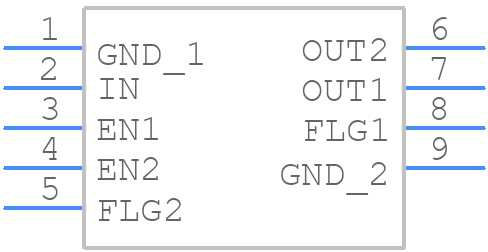

Symbol

click to zoom

PCB Footprints

AP2152AFGEG-7 - Diodes Incorporated PCB footprint - Other - Other - U-DFN3030-8

click to zoom

3D Models

AP2152AFGEG-7 - Diodes Incorporated - 3D model - Other - U-DFN3030-8

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AP2152AFGEG-7
Part Number AP2152AFGEG-7
Manufacturer Diodes Incorporated
Pin Count 9
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - U-DFN3030-8
Released Date Jul 2, 2018
Last Modified Date Jun 25, 2024 8:04 AM UTC
Pinout / Pin List Click Here (Member Only)

AP2152AFGEG-7 Details

Manufacturer Part Number:
AP2152AFGEG-7
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
DFN
Package Description:
GREEN, DFN-8
Pin Count:
8
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
12 Weeks
Manufacturer:
Diodes Incorporated
YTEOL:
7
Adjustable Threshold:
NO
Analog IC - Other Type:
LOAD SWITCH
JESD-30 Code:
S-PDSO-N8
JESD-609 Code:
e4
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Channels:
2
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC8,.12,25
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.63 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.7 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm

AP2152AFGEG-7 Frequently Asked Questions (FAQs)

A good PCB layout for the AP2152AFGEG-7 should include a solid ground plane, wide power traces, and a thermal relief pattern under the IC. This helps to reduce thermal resistance and ensures efficient heat dissipation.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, a minimum output capacitance of 10uF is recommended, and the output voltage should be decoupled with a 1uF ceramic capacitor.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the IC.
The AP2152AFGEG-7 is rated for operation up to 125°C. However, it's essential to consider the thermal derating curve and ensure that the IC does not exceed the maximum junction temperature (Tj) of 150°C.
The power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout. The junction temperature can be estimated using the thermal resistance (RθJA) and the power dissipation: Tj = Ta + (RθJA x Pd).
