AP2152SG-13 - Diodes Incorporated

Description: DiodesZetex AP2152SG-13, Dual Power Distribution Switch, High Side, 160mΩ, 2.7 V min. 8-Pin, SOIC

Download AP2152SG-13 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

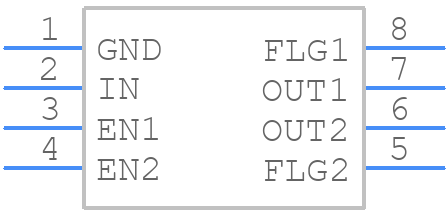

Symbol
AP2152SG-13 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
AP2152SG-13 - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - SO-8
click to zoom
3D Models
AP2152SG-13 - Diodes Incorporated - 3D model - Small Outline Packages - SO-8
click to zoom

AP2152SG-13 Details

  • Manufacturer Part Number:

    AP2152SG-13

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Additional Feature:

    CURRENT LIMIT:0.8A; THERMAL SHUTDOWN:140C

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

AP2152SG-13 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AP2152SG-13 should include a solid ground plane, wide copper traces for power and ground, and a thermal relief pattern under the IC. This helps to reduce thermal resistance and improve heat dissipation.
  • To ensure stable output voltage regulation, make sure to decouple the input and output with suitable capacitors, and use a stable input voltage source. Additionally, ensure that the output capacitor is within the recommended range (10uF to 100uF) and has a low ESR.
  • The AP2152SG-13 can operate reliably up to an ambient temperature of 85°C. However, it's recommended to derate the output current and consider additional thermal management for high-temperature applications.
  • While the AP2152SG-13 is a high-quality device, it's essential to consult with Diodes Incorporated or a qualified representative to discuss specific requirements and ensure the device meets the necessary standards and qualifications for high-reliability or automotive applications.
  • For optimal performance, use a 10uF to 100uF output capacitor with a low ESR (less than 1 ohm) and a 1uF to 10uF input capacitor with a low ESR (less than 1 ohm). The capacitors should be rated for the maximum input voltage and operating temperature.
