AP2161DWG-7 - Diodes Incorporated

Description: Power Switch ICs - Power Distribution 1A SINGLE CH USB 2.0 Switch 2.7V-5.5V

Download AP2161DWG-7 Model

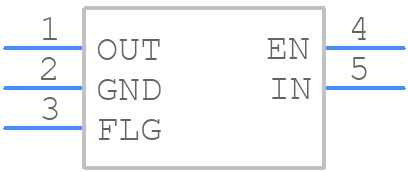

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AP2161DWG-7 - Diodes Incorporated PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - SOT 25
click to zoom
3D Models
AP2161DWG-7 - Diodes Incorporated  - 3D model - SOT23 (5-Pin) - SOT 25
click to zoom

AP2161DWG-7 Details

  • Manufacturer Part Number:

    AP2161DWG-7

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT

  • Package Description:

    GREEN, SOT-25, 5 PIN

  • Pin Count:

    5

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

AP2161DWG-7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AP2161DWG-7 should include a solid ground plane, wide copper traces for power and ground, and a thermal relief pattern under the IC. A 4-layer PCB with a thermal via under the IC is also recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, add a 10nF to 22nF capacitor between the VIN and GND pins to filter out noise and prevent oscillation.
  • Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the IC.
  • The AP2161DWG-7 is rated for operation up to 125°C, but its performance may degrade at high temperatures. Ensure proper thermal management, such as heat sinking and airflow, to maintain a safe operating temperature.
  • The output voltage of the AP2161DWG-7 is adjustable using the FB pin. The output voltage can be calculated using the formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors connected to the FB pin.
