A recommended PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure stability and prevent oscillations in the output voltage, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, a minimum output capacitance of 10uF is recommended, and the output capacitor's ESR should be less than 1 ohm.
Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the device.
While the AP2161FMG-7 is rated for operation up to 125°C, it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure that the device is properly heatsinked, and the PCB is designed to dissipate heat efficiently.
The output voltage ripple and noise can be calculated using the formula: ΔVout = (Iout * ESR) / (f * Cout), where Iout is the output current, ESR is the output capacitor's equivalent series resistance, f is the switching frequency, and Cout is the output capacitance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP2161FMG-7 Overview

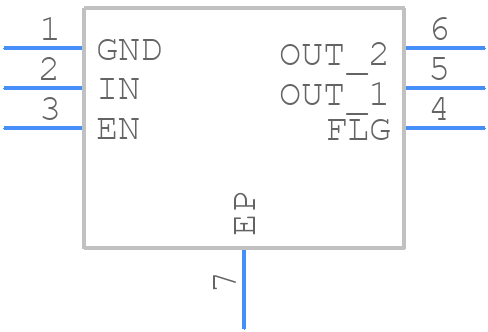

Use the download button to access the AP2161FMG-7 schematic symbol, PCB footprint, and 3D model.
