The recommended PCB layout for optimal thermal performance involves placing a thermal pad on the bottom of the package, using a minimum of 2oz copper thickness, and ensuring good thermal conduction to the surrounding copper area. A thermal via array can also be used to improve heat dissipation.
To ensure stable output voltage regulation, it is recommended to use a minimum output capacitance of 10uF, with a low ESR (Equivalent Series Resistance) and a voltage rating that meets or exceeds the output voltage. Additionally, the input capacitor should be placed close to the VIN pin to reduce noise and ripple.
The maximum ambient temperature for reliable operation of the AP2171DM8G-13 is 85°C. However, the device can operate up to 125°C with derating. It is recommended to follow the thermal derating curve provided in the datasheet to ensure reliable operation.
To protect the device from overvoltage and undervoltage conditions, it is recommended to use a voltage supervisor or a voltage monitor IC that can detect and respond to voltage faults. Additionally, a TVS (Transient Voltage Suppressor) diode can be used to protect the device from voltage transients and spikes.
The recommended input voltage range for optimal performance of the AP2171DM8G-13 is 2.7V to 5.5V. Operating the device outside of this range may affect its performance, efficiency, and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP2171DM8G-13 Overview

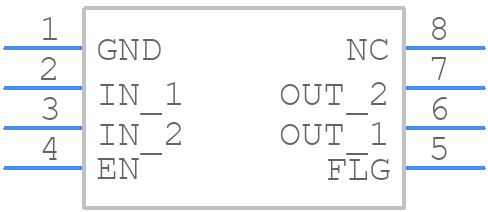

Use the download button to access the AP2171DM8G-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP217,
or try a keyword search, such as Power Management Circuits
