A good PCB layout for the AP2411S-13 should include a solid ground plane, wide copper traces for power and ground, and a thermal relief pattern under the IC to facilitate heat dissipation. A minimum of 2oz copper thickness is recommended.
To ensure stable output voltage regulation, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input voltage is within the specified range, and the output capacitor is of sufficient value and type (e.g., X5R or X7R) to maintain stability.
The AP2411S-13 is rated for operation up to 85°C ambient temperature. However, for reliable long-term operation, it's recommended to keep the ambient temperature below 70°C to minimize thermal stress and ensure optimal performance.
Yes, the AP2411S-13 can be used in high-availability or redundant systems. However, it's essential to ensure that the system design includes proper fault detection, isolation, and redundancy mechanisms to prevent single-point failures.
To protect the AP2411S-13 from input voltage surges or spikes, consider adding a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input. This will help absorb or clamp voltage transients, ensuring the regulator's input voltage remains within the specified range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AP2411S-13 Overview

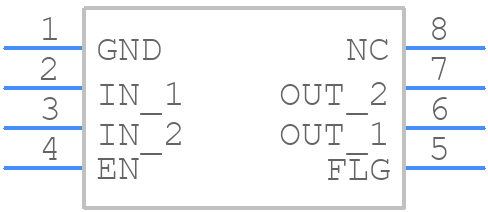

Use the download button to access the AP2411S-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AP241,
or try a keyword search, such as Power Management Circuits
