AP43771VDKZ-13 footprint, schematic symbol and 3D model by Diodes Incorporated

AP43771VDKZ-13 - Diodes Incorporated

Description:  Compatible with USB PD Rev3.0 V1.2  USB-IF PD3.0/PPS Certificated TID = 1090028  Qualcomm QC4/4+ Protocol Certificated  OTP (One-Time-Programmable) for Main Firmware  MTP (Multi-Time-Programmable ) for System Configuration  Built-In Regulator for CV and CC Control  Support SCP/OTP/OVP/UVP with Auto Restart  Support Power Saving Mode  External N-MOSFET Control for VBUS Power Delivery  Support e-Marker Cable Detection  Operating Voltage Range: 3.3V to 16V

Download AP43771VDKZ-13 Model

Schematic
symbols

PCB
footprints

3D
models

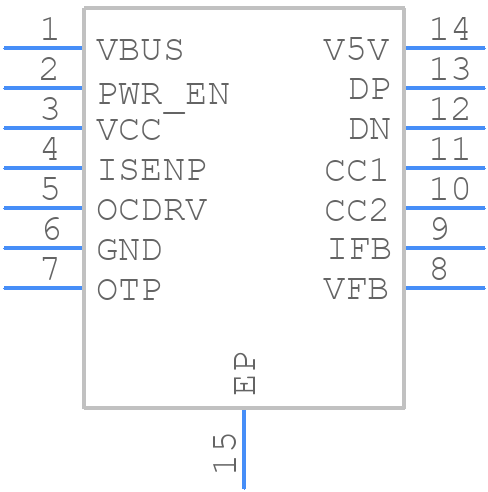

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AP43771VDKZ-13
Part Number AP43771VDKZ-13
Manufacturer Diodes Incorporated
Pin Count 15
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - W-DFN3030-14
Released Date Jan 11, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

AP43771VDKZ-13 Details

Manufacturer Part Number:
AP43771VDKZ-13
Manufacturer:
Diodes Incorporated

Trust Checks

Community Provided

System Verified

Community Approved

AP43771VDKZ-13 Overview

Use the download button to access the AP43771VDKZ-13 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AP437, or try a keyword search, such as Metal Film Resistors
