APA150-PQ208 - Microsemi Corporation

APA150-PQ208 Details

• Manufacturer Part Number:

  APA150-PQ208

• Part Life Cycle Code:

  Obsolete

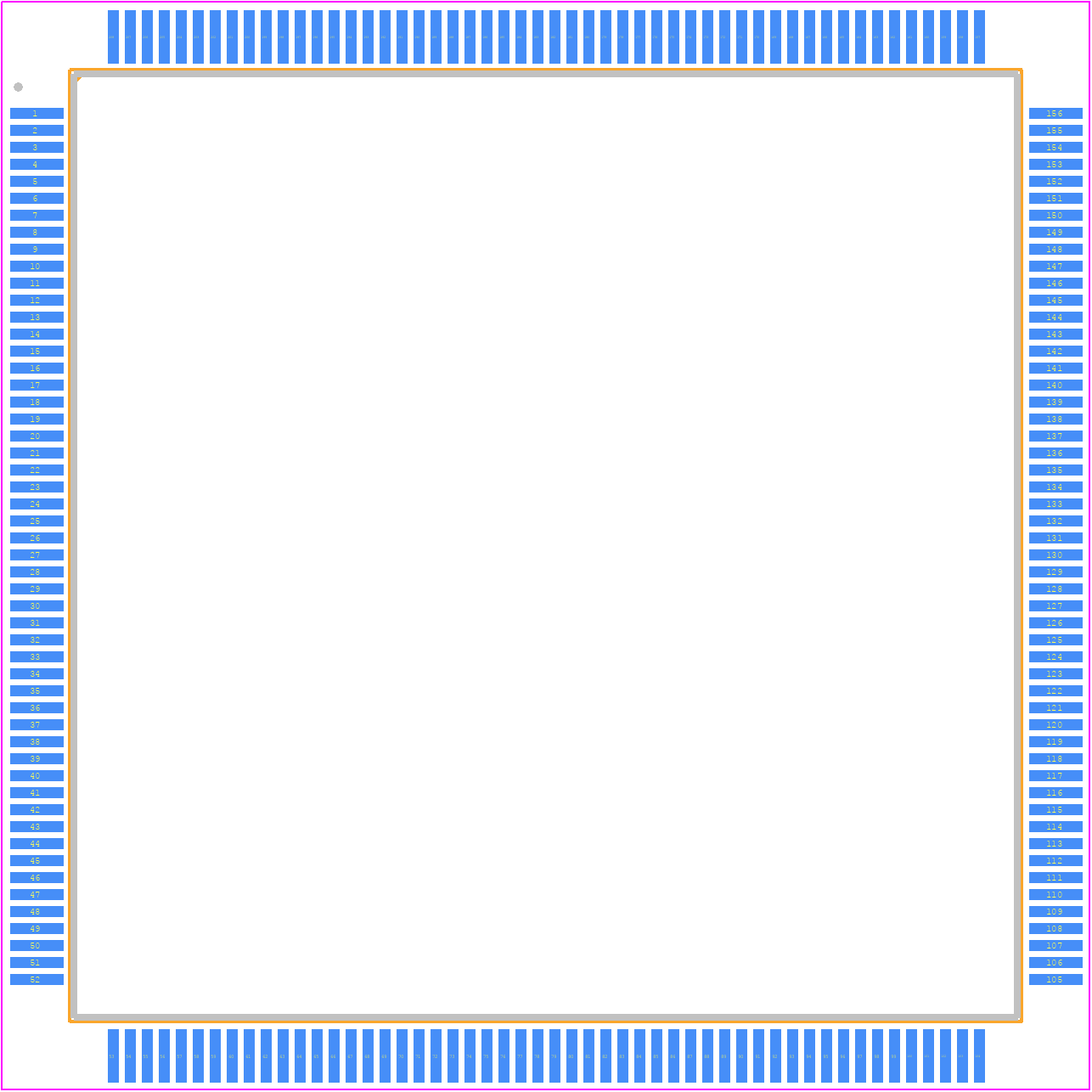

• Package Description:

  0.50 MM PITCH, PLASTIC, QFP-208

• HTS Code:

  8542.31.00.60

• Manufacturer:

  Microsemi Corporation (now Microchip)

• YTEOL:

  0

• Clock Frequency-Max:

  180 MHz

• JESD-30 Code:

  S-PQFP-G208

• JESD-609 Code:

  e0

• Length:

  28 mm

• Moisture Sensitivity Level:

  3

• Number of Equivalent Gates:

  150000

• Number of Inputs:

  158

• Number of Logic Cells:

  6144

• Number of Outputs:

  158

• Number of Terminals:

  208

• Operating Temperature-Max:

  70 °C

• Organization:

  150000 GATES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  FQFP

• Package Equivalence Code:

  QFP208,1.2SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, FINE PITCH

• Programmable Logic Type:

  FIELD PROGRAMMABLE GATE ARRAY

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.1 mm

• Supply Voltage-Max:

  2.7 V

• Supply Voltage-Min:

  2.3 V

• Supply Voltage-Nom:

  2.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  28 mm
