APB2012SURKCGKC - Kingbright

Description: Green, Red 570nm Green, 630nm Red LED Indication - Discrete 2.1V Green, 1.95V Red 0805 (2012 Metric)

Download APB2012SURKCGKC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

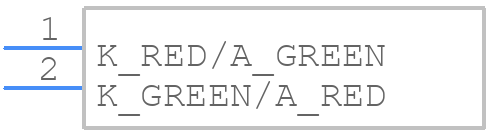

APB2012SURKCGKC - Kingbright - PCB symbol
click to zoom
PCB Footprints
APB2012SURKCGKC - Kingbright PCB footprint - Other - Other - 0805 (2012 Metric)
click to zoom
3D Models
APB2012SURKCGKC - Kingbright - 3D model - Other - 0805 (2012 Metric)
click to zoom

APB2012SURKCGKC Details

  • Manufacturer Part Number:

    APB2012SURKCGKC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    2 X 1.25 MM, 1.10 MM HEIGHT, ROHS COMPLIANT, SMD, 2 PIN

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED/GREEN

  • Configuration:

    COMMON BIPOLAR TERMINAL, 2 ELEMENTS

  • Forward Current-Max:

    0.03 A

  • Lens Type:

    WATER CLEAR

  • Luminous Intensity-Nom:

    200.0/50.0 mcd

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    DUAL COLOR LED

  • Overall Height:

    1.1 mm

  • Packing Method:

    TR, 7 INCH

  • Peak Wavelength:

    645/574 nm

  • Shape:

    RECTANGULAR

  • Size:

    1.3 mm

  • Surface Mount:

    YES

  • Terminal Pitch:

    2.35 mm

  • Viewing Angle:

    150 deg

APB2012SURKCGKC Frequently Asked Questions (FAQs)

  • The recommended storage temperature for the APB2012SURKCGKC is -20°C to 30°C, with a relative humidity of 60% or less.
  • While the APB2012SURKCGKC is not specifically designed for outdoor use, it can be used in outdoor applications if properly sealed and protected from moisture and extreme temperatures.
  • The maximum forward current that can be applied to the APB2012SURKCGKC is 30mA, but it's recommended to operate at a maximum of 20mA to ensure reliability and longevity.
  • Yes, the APB2012SURKCGKC is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
  • The typical luminous intensity of the APB2012SURKCGKC is 12,000 mcd, but this can vary depending on the specific bin and operating conditions.
