APX809-29SAG-7 - Diodes Incorporated

Description: DiodesZetex APX809-29SAG-7, Reset Circuit 2.93V 3-Pin, SOT-23

Download APX809-29SAG-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

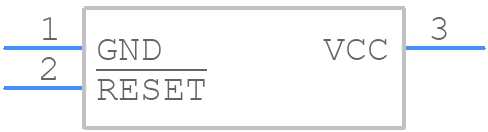

Symbol
APX809-29SAG-7 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
APX809-29SAG-7 - Diodes Incorporated PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - APX809-29SAG-7
click to zoom
3D Models
APX809-29SAG-7 - Diodes Incorporated - 3D model - SOT23 (3-Pin) - APX809-29SAG-7
click to zoom

APX809-29SAG-7 Details

  • Manufacturer Part Number:

    APX809-29SAG-7

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOT-23

  • Package Description:

    SOT-23, 3 PIN

  • Pin Count:

    3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TO-236

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.35 mm

  • Supply Current-Max (Isup):

    0.04 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.96 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.93V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.3 mm

APX809-29SAG-7 Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to have a large copper area connected to the GND pin, and to use thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended.
  • To ensure proper biasing, connect the EN pin to a voltage source between 1.2V to 3.6V, and the VIN pin to a voltage source between 2.5V to 5.5V. Also, ensure the input capacitor is properly sized to handle the input voltage ripple.
  • The maximum allowed input voltage ripple for the APX809-29SAG-7 is 10% of the input voltage. Exceeding this limit may affect the regulator's performance and stability.
  • The APX809-29SAG-7 is rated for operation up to 125°C. However, it's recommended to derate the output current and input voltage according to the temperature derating curve provided in the datasheet to ensure reliable operation.
  • To troubleshoot issues, first check the input voltage and current, and ensure the output capacitor is properly sized. Then, verify the PCB layout and thermal design. If issues persist, consult the datasheet and application notes for guidance, or contact Diodes Incorporated's technical support.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

APX809-29SAG-7 Overview

Use the download button to access the APX809-29SAG-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like APX80, or try a keyword search, such as Power Management Circuits
