APX809-31SAG-7 - Diodes Incorporated

Description: Reset Circuit 3.08V 30uA SOT23 DiodesZetex APX809-31SAG-7, Reset Monitor 3 to 3.15 V, 3-Pin SOT-23

Download APX809-31SAG-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

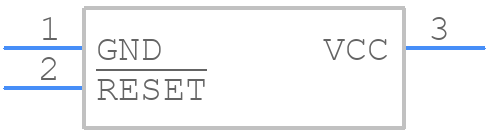

Symbol
APX809-31SAG-7 - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
APX809-31SAG-7 - Diodes Incorporated PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - SOT23_2024
click to zoom
3D Models
APX809-31SAG-7 - Diodes Incorporated - 3D model - SOT23 (3-Pin) - SOT23_2024
click to zoom

APX809-31SAG-7 Details

  • Manufacturer Part Number:

    APX809-31SAG-7

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOT-23

  • Package Description:

    SOT-23, 3 PIN

  • Pin Count:

    3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TO-236

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.35 mm

  • Supply Current-Max (Isup):

    0.04 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.96 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.08V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.3 mm

APX809-31SAG-7 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would involve placing the APX809-31SAG-7 near a thermal pad or a heat sink, ensuring good airflow, and using thermal vias to dissipate heat efficiently.
  • To ensure stability, follow the recommended capacitor values and types in the datasheet, and place them close to the regulator. Additionally, ensure the input voltage is within the recommended range and the output capacitor is of sufficient value.
  • The maximum safe operating temperature for the APX809-31SAG-7 is 125°C. Operating above this temperature may reduce the lifespan or cause permanent damage to the device.
  • While the APX809-31SAG-7 is a high-quality device, it may not meet the specific requirements for high-reliability or automotive applications. Check the device's AEC-Q100 qualification and consult with Diodes Incorporated for specific guidance.
  • To troubleshoot issues, start by verifying the input voltage, output voltage, and capacitor values. Check for any signs of overheating, and ensure the device is properly soldered and connected. Consult the datasheet and application notes for guidance on troubleshooting specific issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

APX809-31SAG-7 Overview

Use the download button to access the APX809-31SAG-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like APX80, or try a keyword search, such as Power Management Circuits
