APZ1012221M050R - Kyocera AVX

Description: Aluminium Organic Polymer Capacitors 50V 220uF 2000Hours ESR=30mOhms 20%

Download APZ1012221M050R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
APZ1012221M050R - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

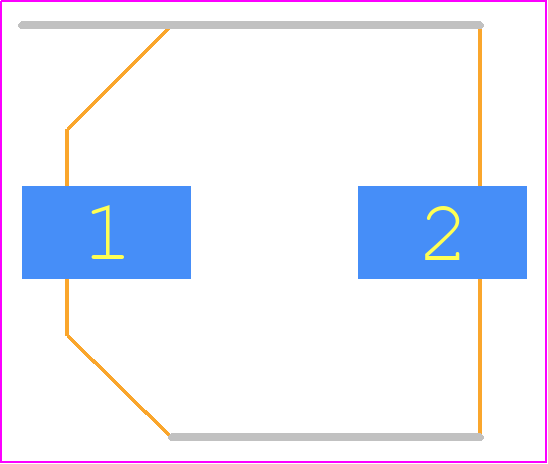

APZ1012221M050R - Kyocera AVX PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 1012_2023
click to zoom
3D Models
APZ1012221M050R - Kyocera AVX - 3D model - Capacitor Al Electrolytic - 1012_2023
click to zoom

APZ1012221M050R Details

  • Manufacturer Part Number:

    APZ1012221M050R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    0

  • Additional Feature:

    ESR IS MEASURED AT 100KHZ

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    10 mm

  • Dielectric Material:

    ALUMINUM (SOLID POLYMER)

  • ESR:

    30 mΩ

  • Height:

    12.5 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    2.2 mA

  • Length:

    10.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, 15 Inch

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    115 mA

  • Size Code:

    4141

  • Surface Mount:

    YES

  • Tan Delta:

    0.12

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Shape:

    FLAT

  • Width:

    10.3 mm

APZ1012221M050R Frequently Asked Questions (FAQs)

  • The recommended land pattern for APZ1012221M050R can be found in the Kyocera AVX Components' recommended land pattern document or by contacting their technical support. The land pattern should be designed to accommodate the component's dimensions and pad layout to ensure reliable soldering and assembly.
  • Handle the component by the edges or the body, avoiding touching the terminations or the component's surface. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage. Follow standard assembly and handling procedures for sensitive electronic components.
  • The maximum storage temperature for APZ1012221M050R is typically 40°C (104°F) with a relative humidity of 90% or less. Storage conditions should be in accordance with the IPC/JEDEC J-STD-033 standard to prevent moisture absorption and damage.
  • The APZ1012221M050R component is designed to withstand certain levels of vibration, but the specific vibration tolerance depends on the application and mounting method. Consult with Kyocera AVX Components' technical support or refer to their vibration testing data to determine the component's suitability for your specific application.
  • Follow the recommended soldering profile and procedures for the APZ1012221M050R component, which can be found in the datasheet or by contacting Kyocera AVX Components' technical support. Use a soldering iron with a temperature range of 250°C to 260°C (482°F to 500°F) and a solder with a melting point of 217°C (423°F) or higher.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

APZ1012221M050R Overview

Use the download button to access the APZ1012221M050R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like APZ10, or try a keyword search, such as Aluminum Electrolytic Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
