ARG81400KLVATR - Allegro Microsystems

Description: Automotive Buck-Boost PMIC W/5 Ldo Outputs

Download ARG81400KLVATR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

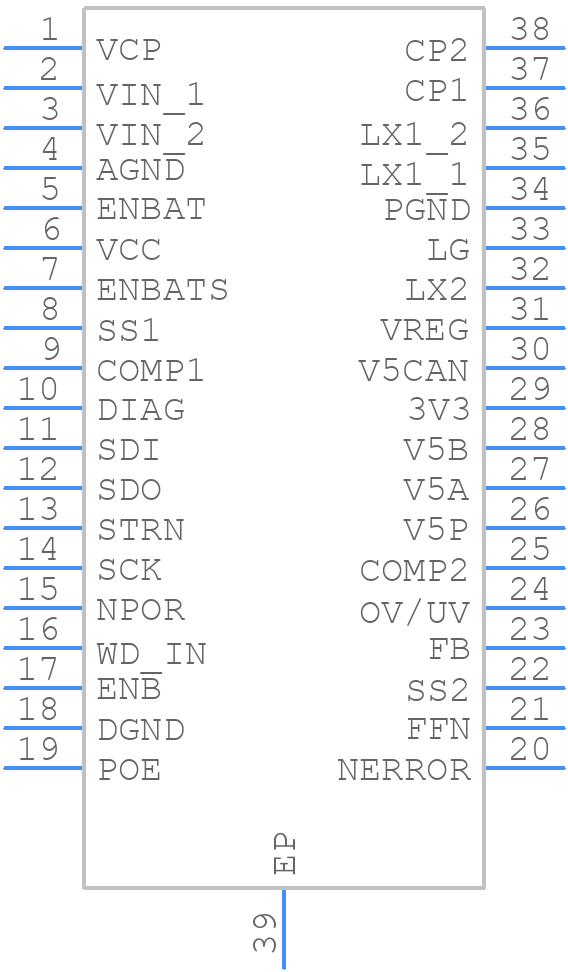

ARG81400KLVATR - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ARG81400KLVATR - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - Package LV, 38-Pin eTSSOP with Exposed Pad+
click to zoom
3D Models
ARG81400KLVATR - Allegro Microsystems - 3D model - Small Outline Packages - Package LV, 38-Pin eTSSOP with Exposed Pad+
click to zoom

ARG81400KLVATR Details

  • Manufacturer Part Number:

    ARG81400KLVATR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-38

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    7

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    POWER SUPPLY MANAGEMENT CIRCUIT

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP38,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    3.8 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ARG81400KLVATR Frequently Asked Questions (FAQs)

  • Allegro provides a recommended PCB layout in their application note AN296068, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • Calibration involves adjusting the zero-point and sensitivity of the device. Allegro provides a calibration procedure in their datasheet, which involves applying a known current and adjusting the output voltage to match the expected value.
  • The maximum allowable voltage on the VCC pin is 5.5V, as specified in the datasheet. Exceeding this voltage may damage the device.
  • The ARG81400KLVATR is rated for operation up to 150°C, but its accuracy and performance may degrade at higher temperatures. Allegro recommends using the device within its specified operating temperature range for optimal performance.
  • The differential output of the ARG81400KLVATR can be converted to a single-ended signal using an op-amp or a differential amplifier. Allegro provides examples of differential-to-single-ended conversion circuits in their application notes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ARG81400KLVATR Overview

Use the download button to access the ARG81400KLVATR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARG81, or try a keyword search, such as Power Management Circuits
