ARG82800KLVATR - Allegro Microsystems

Description: PMIC For Safety-Related Systems

Download ARG82800KLVATR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

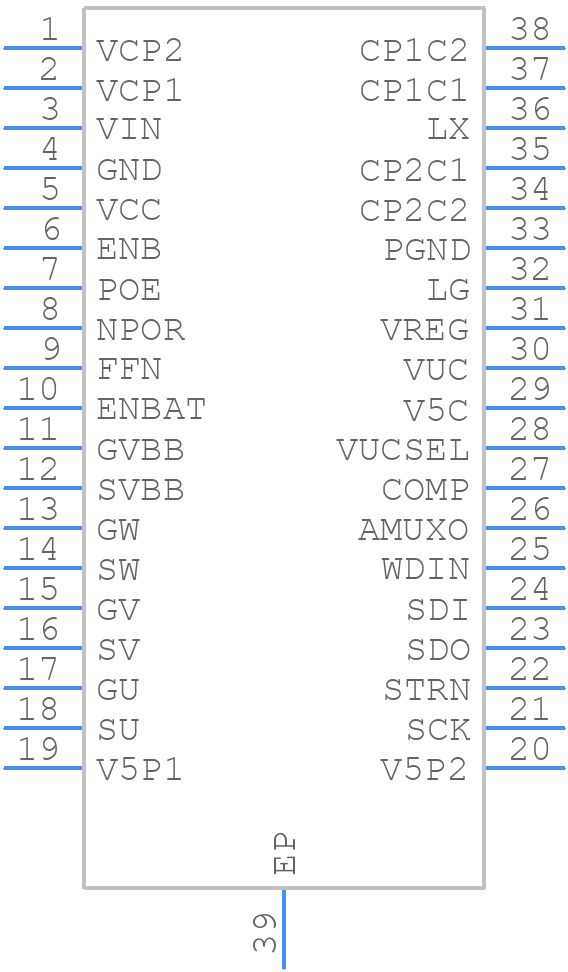

Symbol
ARG82800KLVATR - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ARG82800KLVATR - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - Package LV, 38-Pin eTSSOP with Exposed Pad+
click to zoom
3D Models
ARG82800KLVATR - Allegro Microsystems - 3D model - Small Outline Packages - Package LV, 38-Pin eTSSOP with Exposed Pad+
click to zoom

ARG82800KLVATR Details

  • Manufacturer Part Number:

    ARG82800KLVATR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TSSOP-38

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    R-PDSO-G38

  • Length:

    9.7 mm

  • Number of Channels:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP38,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    3.8 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ARG82800KLVATR Frequently Asked Questions (FAQs)

  • Allegro provides a recommended PCB layout in their application note AN296068, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • Calibration involves adjusting the zero-point and sensitivity of the device. Allegro provides a calibration procedure in their datasheet, which involves applying a known current and adjusting the output voltage to match the expected value.
  • The maximum allowable voltage on the VCC pin is 5.5V, as specified in the datasheet. Exceeding this voltage may damage the device.
  • The ARG82800KLVATR is rated for operation up to 150°C, but thermal management is crucial to ensure reliability. Allegro provides thermal resistance values in the datasheet to help with heat sink design and thermal management.
  • Allegro recommends using proper shielding, grounding, and layout techniques to minimize EMI. They also provide EMI-related guidelines in their application note AN296068.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ARG82800KLVATR Overview

Use the download button to access the ARG82800KLVATR schematic symbol, PCB footprint, and 3D model.
