Part Image

ARG82801KLVATR - Allegro Microsystems

Description: PMIC For Safety Related Systems W/Buck Or Buck Boost Pre-Reg

Download ARG82801KLVATR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

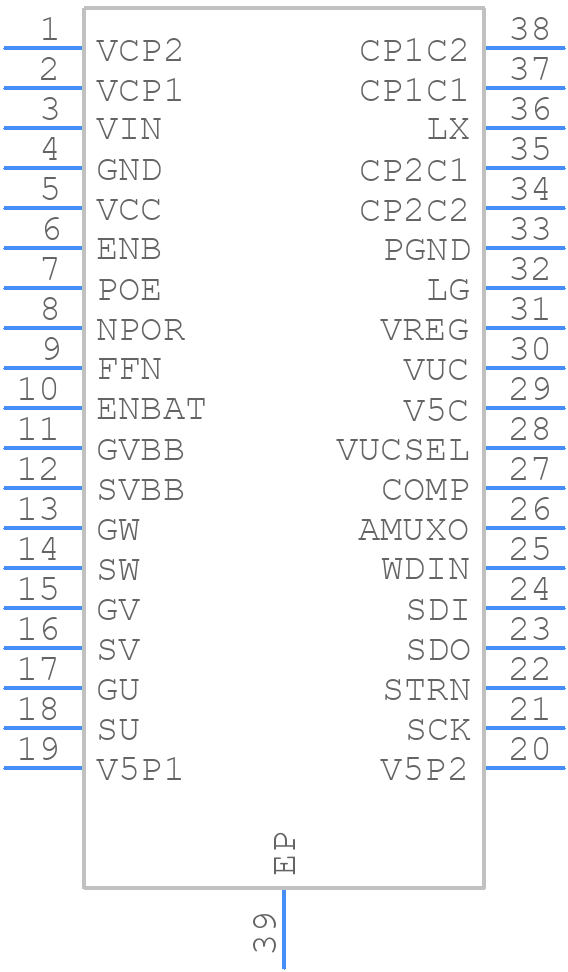

Symbol
ARG82801KLVATR - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
ARG82801KLVATR - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - Package LV, 38-Pin eTSSOP with Exposed Pad+
click to zoom
3D Models
ARG82801KLVATR - Allegro Microsystems - 3D model - Small Outline Packages - Package LV, 38-Pin eTSSOP with Exposed Pad+
click to zoom

ARG82801KLVATR Details

  • Manufacturer Part Number:

    ARG82801KLVATR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-38

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Number of Channels:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP38,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    3.8 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

ARG82801KLVATR Frequently Asked Questions (FAQs)

  • A symmetrical layout with the Hall element at the center, and a ground plane underneath the device is recommended. Keep the PCB traces as short as possible and avoid routing signals under the device.
  • Use a shielded cable or a twisted pair for the output signal, and consider adding a ferrite bead or a common-mode choke to reduce EMI. Ensure the PCB layout is designed to minimize radiation.
  • The ARG82801KLVATR is rated for operation from -40°C to 150°C (TJ). However, the device's accuracy and sensitivity may degrade at extreme temperatures.
  • Yes, the ARG82801KLVATR is designed to withstand vibrations up to 20 G. However, ensure the device is properly mounted and secured to the PCB to prevent mechanical stress.
  • Calibration is not required for the ARG82801KLVATR, as it is a latch-based device. However, ensure the device is properly powered and the output signal is properly terminated to prevent oscillations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ARG82801KLVATR Overview

Use the download button to access the ARG82801KLVATR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ARG82, or try a keyword search, such as Power Management Circuits
