AS4C128M32MD2A-25BIN - Alliance Memory

AS4C128M32MD2A-25BIN Details

• Manufacturer Part Number:

  AS4C128M32MD2A-25BIN

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

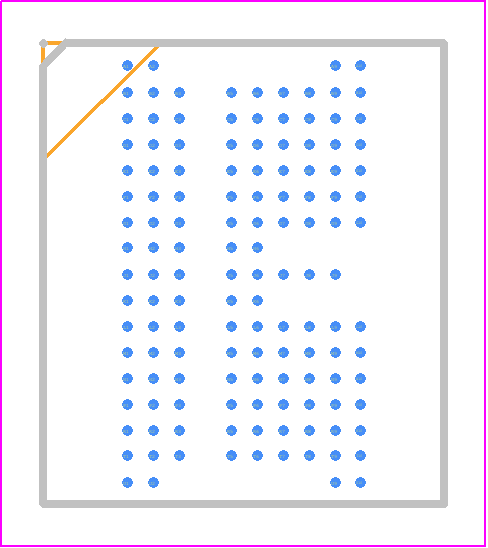

• Package Description:

  FBGA-134

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.36

• Factory Lead Time:

  20 Weeks

• Manufacturer:

  Alliance Memory Inc

• YTEOL:

  4

• Access Mode:

  SINGLE BANK PAGE BURST

• Additional Feature:

  AUTO/SELF REFRESH; IT ALSO REQUIRES 1.8V NOMINAL SUPPLY

• Clock Frequency-Max (fCLK):

  400 MHz

• I/O Type:

  COMMON

• Interleaved Burst Length:

  4,8,16

• JESD-30 Code:

  R-PBGA-B134

• Length:

  11.5 mm

• Memory Density:

  4294967296 bit

• Memory IC Type:

  DDR2 DRAM

• Memory Width:

  32

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Ports:

  1

• Number of Terminals:

  134

• Number of Words:

  134217728 words

• Number of Words Code:

  128000000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  128MX32

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA134,10X17,25

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Refresh Cycles:

  8192

• Seated Height-Max:

  1 mm

• Self Refresh:

  YES

• Sequential Burst Length:

  4,8,16

• Standby Current-Max:

  0.001 A

• Standby Voltage-Min:

  1.14 V

• Supply Current-Max:

  0.3 mA

• Supply Voltage-Max (Vsup):

  1.3 V

• Supply Voltage-Min (Vsup):

  1.14 V

• Supply Voltage-Nom (Vsup):

  1.2 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  BALL

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  BOTTOM

• Width:

  10 mm
