AS4C1G16D4-062BIN - Alliance Memory

Description: DRAM DDR4, 16Gb, 1G x 16, 1.2v, 96-ball FBGA, 1600MHz, Industrial

Download AS4C1G16D4-062BIN Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AS4C1G16D4-062BIN model

Email notifications will be applied after download.

Send part feedback

Symbol

AS4C1G16D4-062BIN - Alliance Memory - PCB symbol

PCB Footprints

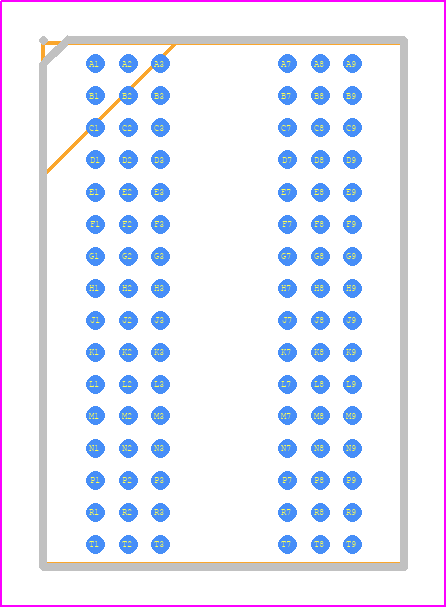

AS4C1G16D4-062BIN - Alliance Memory PCB footprint - BGA - BGA - 96-Ball FBGA – x16 (KH)

3D Models

AS4C1G16D4-062BIN - Alliance Memory - 3D model - BGA - 96-Ball FBGA – x16 (KH)

Datasheet Download Datasheet
Stock & Prices Price & Stock for AS4C1G16D4-062BIN
Part Number AS4C1G16D4-062BIN
Manufacturer Alliance Memory
Pin Count 96
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 96-Ball FBGA – x16 (KH)
Released Date Nov 11, 2025
Last Modified Date Nov 11, 2025 4:27 AM UTC
Pinout / Pin List Click Here (Member Only)

AS4C1G16D4-062BIN Details

Manufacturer Part Number:
AS4C1G16D4-062BIN
Part Life Cycle Code:
End Of Life
Package Description:
FBGA-96
Manufacturer:
Alliance Memory Inc

Trust Checks

Community Provided

System Verified

Community Approved

AS4C1G16D4-062BIN Overview

Use the download button to access the AS4C1G16D4-062BIN schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AS4C1, or try a keyword search, such as DRAMs
