AS4C1G8D4-75BIN - Alliance Memory

Description: DRAM

Download AS4C1G8D4-75BIN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

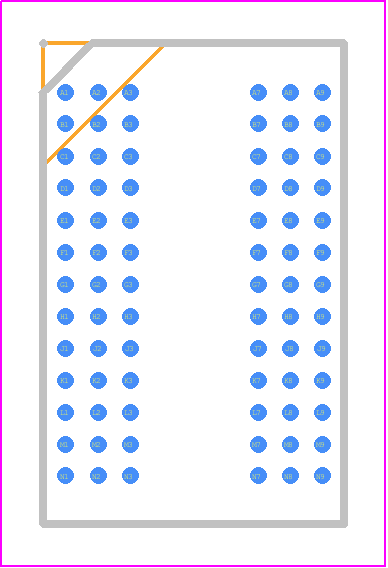

AS4C1G8D4-75BIN - Alliance Memory PCB footprint - BGA - BGA - AS4C1G8D4-75BIN
click to zoom
3D Models
AS4C1G8D4-75BIN - Alliance Memory  - 3D model - BGA - AS4C1G8D4-75BIN
click to zoom

AS4C1G8D4-75BIN Details

  • Manufacturer Part Number:

    AS4C1G8D4-75BIN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.36

  • Manufacturer:

    Alliance Memory Inc

  • YTEOL:

    0

  • Access Mode:

    MULTI BANK PAGE BURST

  • Additional Feature:

    AUTO/SELF REFRESH

  • Clock Frequency-Max (fCLK):

    1333 MHz

  • I/O Type:

    COMMON

  • Interleaved Burst Length:

    4,8

  • JESD-30 Code:

    R-PBGA-B78

  • Length:

    12 mm

  • Memory Density:

    8589934592 bit

  • Memory IC Type:

    DDR4 DRAM

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    78

  • Number of Words:

    1073741824 words

  • Number of Words Code:

    1000000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    95 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1GX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA78,9X13,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    1.2 mm

  • Self Refresh:

    YES

  • Sequential Burst Length:

    4,8

  • Standby Current-Max:

    0.04 A

  • Supply Current-Max:

    0.32 mA

  • Supply Voltage-Max (Vsup):

    1.26 V

  • Supply Voltage-Min (Vsup):

    1.14 V

  • Supply Voltage-Nom (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    7.5 mm

AS4C1G8D4-75BIN Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the AS4C1G8D4-75BIN is 0°C to 85°C.
  • Yes, the AS4C1G8D4-75BIN is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The refresh interval for the AS4C1G8D4-75BIN is 7.8us (microseconds) at a temperature range of 0°C to 85°C.
  • Yes, the AS4C1G8D4-75BIN is designed to operate at a supply voltage of 3.3V ± 0.3V, making it suitable for use in 3.3V systems.
  • The minimum clock cycle time for the AS4C1G8D4-75BIN is 7.5ns (nanoseconds) at a clock frequency of 133MHz.
