Part Image

AS4C256M16D3LC-10BIN - Alliance Memory

Description: DRAM

Download AS4C256M16D3LC-10BIN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

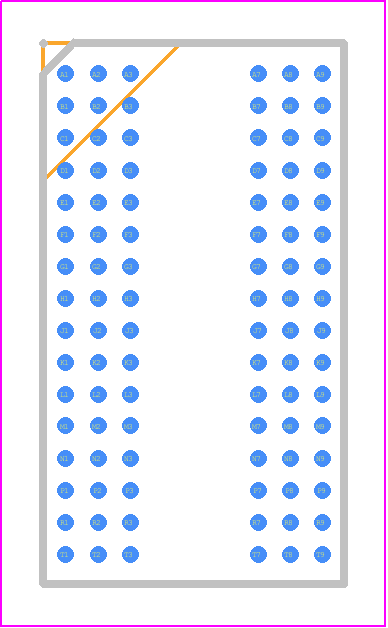

AS4C256M16D3LC-10BIN - Alliance Memory PCB footprint - BGA - BGA - AS4C256M16D3LC-10BIN
click to zoom
3D Models
AS4C256M16D3LC-10BIN - Alliance Memory  - 3D model - BGA - AS4C256M16D3LC-10BIN
click to zoom

AS4C256M16D3LC-10BIN Details

  • Manufacturer Part Number:

    AS4C256M16D3LC-10BIN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FBGA-96

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.36

  • Factory Lead Time:

    8 Weeks

  • Date Of Intro:

    2020-03-26

  • Manufacturer:

    Alliance Memory Inc

  • YTEOL:

    4

  • Access Mode:

    MULTI BANK PAGE BURST

  • Clock Frequency-Max (fCLK):

    933 MHz

  • I/O Type:

    COMMON

  • Interleaved Burst Length:

    4,8

  • JESD-30 Code:

    R-PBGA-B96

  • JESD-609 Code:

    e1

  • Length:

    13.5 mm

  • Memory Density:

    4294967296 bit

  • Memory IC Type:

    DDR3L DRAM

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    96

  • Number of Words:

    268435456 words

  • Number of Words Code:

    256000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    95 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    256MX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA96,9X16,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Refresh Cycles:

    8192

  • Seated Height-Max:

    1.2 mm

  • Self Refresh:

    YES

  • Sequential Burst Length:

    4,8

  • Standby Current-Max:

    0.008 A

  • Supply Current-Max:

    0.242 mA

  • Supply Voltage-Max (Vsup):

    1.45 V

  • Supply Voltage-Min (Vsup):

    1.283 V

  • Supply Voltage-Nom (Vsup):

    1.35 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AS4C256M16D3LC-10BIN Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the AS4C256M16D3LC-10BIN is 0°C to 85°C.
  • The AS4C256M16D3LC-10BIN requires a refresh cycle every 64ms, with a minimum of 8192 refreshes within an 64ms interval.
  • The AS4C256M16D3LC-10BIN supports a maximum clock frequency of 100MHz.
  • After power-up, the AS4C256M16D3LC-10BIN requires a minimum of 200us delay before applying clock signals, followed by a minimum of 8 clock cycles of NOP commands to initialize the device.
  • The AS4C256M16D3LC-10BIN has a latency of 3 clock cycles (CL3).
