AS4C256M16D4-75BINTR - Alliance Memory

Description: DRAM Chip DDR4 SDRAM 4G-bit 256M X 16 96-Pin FBGA T/R - Tape and Reel

Download AS4C256M16D4-75BINTR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AS4C256M16D4-75BINTR model

Email notifications will be applied after download.

Send part feedback

Symbol

AS4C256M16D4-75BINTR - Alliance Memory - PCB symbol

PCB Footprints

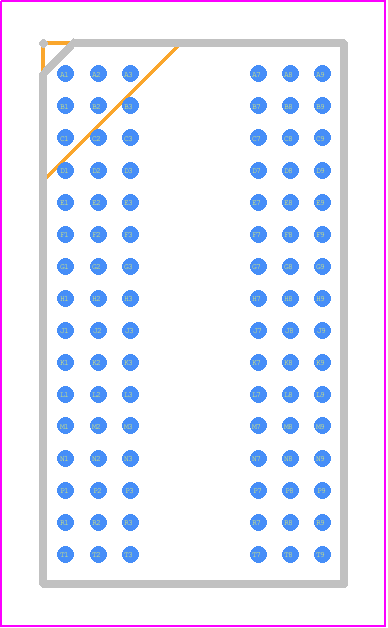

AS4C256M16D4-75BINTR - Alliance Memory PCB footprint - BGA - BGA - 96-Ball7.5x13.5x1.2mm(max)

3D Models

AS4C256M16D4-75BINTR - Alliance Memory - 3D model - BGA - 96-Ball7.5x13.5x1.2mm(max)

Datasheet Download Datasheet
Stock & Prices Price & Stock for AS4C256M16D4-75BINTR
Part Number AS4C256M16D4-75BINTR
Manufacturer Alliance Memory
Pin Count 96
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 96-Ball7.5x13.5x1.2mm(max)
Released Date Jun 26, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

AS4C256M16D4-75BINTR Details

Manufacturer Part Number:
AS4C256M16D4-75BINTR
Manufacturer:
Alliance Memory Inc

Trust Checks

Community Provided

System Verified

Community Approved

AS4C256M16D4-75BINTR Overview

Use the download button to access the AS4C256M16D4-75BINTR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AS4C2, or try a keyword search, such as DRAMs
