AS4C2M32D1A-5BIN - Alliance Memory

AS4C2M32D1A-5BIN Details

• Manufacturer Part Number:

  AS4C2M32D1A-5BIN

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

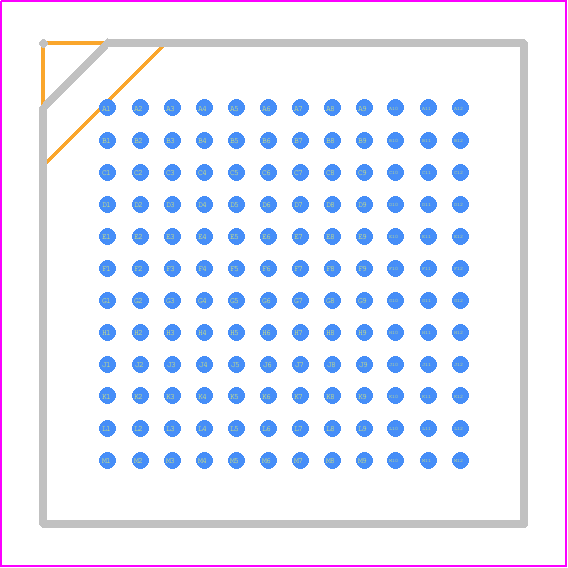

• Package Description:

  FBGA-144

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.02

• Factory Lead Time:

  20 Weeks

• Manufacturer:

  Alliance Memory Inc

• YTEOL:

  4

• Access Mode:

  FOUR BANK PAGE BURST

• Access Time-Max:

  0.7 ns

• Additional Feature:

  AUTO/SELF REFRESH

• Clock Frequency-Max (fCLK):

  200 MHz

• I/O Type:

  COMMON

• Interleaved Burst Length:

  2,4,8

• JESD-30 Code:

  S-PBGA-B144

• Length:

  12 mm

• Memory Density:

  67108864 bit

• Memory IC Type:

  DDR1 DRAM

• Memory Width:

  32

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Ports:

  1

• Number of Terminals:

  144

• Number of Words:

  2097152 words

• Number of Words Code:

  2000000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  2MX32

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA144,12X12,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Refresh Cycles:

  4096

• Seated Height-Max:

  1.4 mm

• Self Refresh:

  YES

• Sequential Burst Length:

  2,4,8

• Standby Current-Max:

  0.015 A

• Standby Voltage-Min:

  2.3 V

• Supply Current-Max:

  0.24 mA

• Supply Voltage-Max (Vsup):

  2.7 V

• Supply Voltage-Min (Vsup):

  2.3 V

• Supply Voltage-Nom (Vsup):

  2.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Width:

  12 mm
