AS4C64M16D3W-12BCN - Alliance Memory

Description: Alliance Memory DDR3, 1Gb, 64M X 16, 1.5V, 96-BALL FBGA, 800MHZ, Commercial Temp, W Die

Download AS4C64M16D3W-12BCN Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AS4C64M16D3W-12BCN model

Email notifications will be applied after download.

Send part feedback

Symbol

AS4C64M16D3W-12BCN - Alliance Memory - PCB symbol

PCB Footprints

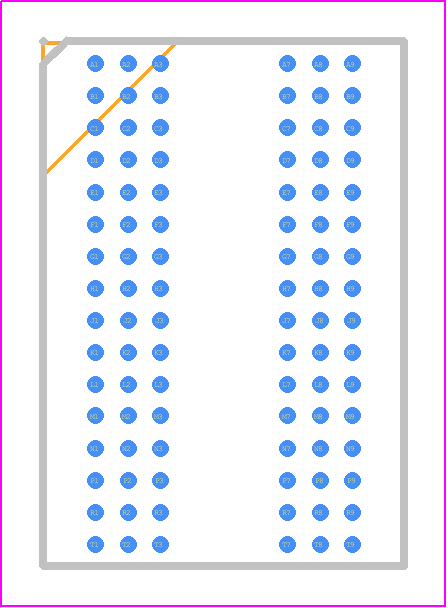

AS4C64M16D3W-12BCN - Alliance Memory PCB footprint - BGA - BGA - 96-Ball BGA Package 9x13x1.2mm(max)

3D Models

AS4C64M16D3W-12BCN - Alliance Memory - 3D model - BGA - 96-Ball BGA Package 9x13x1.2mm(max)

Datasheet Download Datasheet
Stock & Prices Price & Stock for AS4C64M16D3W-12BCN
Part Number AS4C64M16D3W-12BCN
Manufacturer Alliance Memory
Pin Count 96
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - 96-Ball BGA Package 9x13x1.2mm(max)
Released Date Jan 22, 2026
Last Modified Date Jan 22, 2026 10:06 AM UTC
Pinout / Pin List Click Here (Member Only)

AS4C64M16D3W-12BCN Details

Manufacturer Part Number:
AS4C64M16D3W-12BCN
Manufacturer:
Alliance Memory Inc

Trust Checks

Community Provided

System Verified

Community Approved

AS4C64M16D3W-12BCN Overview

Use the download button to access the AS4C64M16D3W-12BCN schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AS4C6, or try a keyword search, such as DRAMs
