The AS4C8M32SA-6BIN can operate in a temperature range of 0°C to 70°C, with an extended temperature range of -40°C to 85°C available for industrial grade devices.
The SDRAM requires a power-on reset sequence, which involves applying a clock signal, then asserting the chip select (CS) and clock enable (CKE) signals low, followed by a delay, and finally de-asserting the CS and CKE signals.
The minimum clock cycle time for the AS4C8M32SA-6BIN is 6ns, which corresponds to a maximum clock frequency of 166.7 MHz.
The AS4C8M32SA-6BIN requires periodic refresh cycles to maintain data integrity. The refresh interval is 64ms, and a minimum of 8192 refresh cycles are required every 64ms.
The AS4C8M32SA-6BIN has a maximum data transfer rate of 1333 MB/s, assuming a clock frequency of 166.7 MHz and a data bus width of 32 bits.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AS4C8M32SA-6BIN Overview

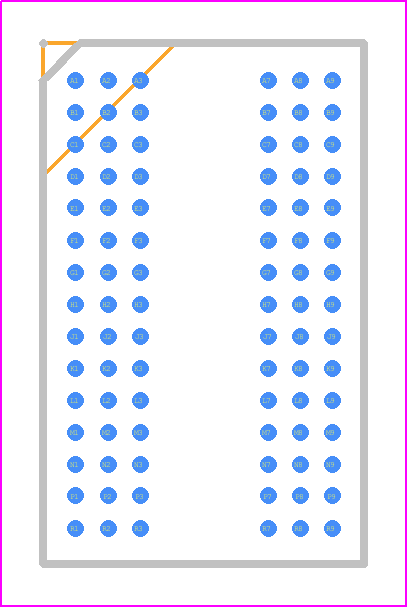

Use the download button to access the AS4C8M32SA-6BIN schematic symbol, PCB footprint, and 3D model.
