ASDAIG-16.000MHZ-X-K-S-T - ABRACON

Description: Automotive and Industrial Grade SMD Crystal Oscillator

Download ASDAIG-16.000MHZ-X-K-S-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

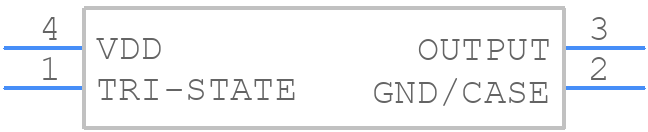

ASDAIG-16.000MHZ-X-K-S-T - ABRACON - PCB symbol
click to zoom
PCB Footprints
ASDAIG-16.000MHZ-X-K-S-T - ABRACON PCB footprint - Other - Other - AbraconASDAIG
click to zoom
3D Models
ASDAIG-16.000MHZ-X-K-S-T - ABRACON - 3D model - Other - AbraconASDAIG
click to zoom

ASDAIG-16.000MHZ-X-K-S-T Details

  • Manufacturer Part Number:

    ASDAIG-16.000MHZ-X-K-S-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 4 PIN

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6.5

  • Additional Feature:

    TS-16949; TRI-STATE; ENABLE/DISABLE FUNCTION

  • Fall Time-Max:

    6 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    30%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    4

  • Operating Frequency-Nom:

    16 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    CMOS

  • Output Load:

    15 pF

  • Package Body Material:

    CERAMIC

  • Packing Method:

    TR, 7 INCH

  • Physical Dimension:

    2.5mm x 2.0mm x 0.95mm

  • Rise Time-Max:

    6 ns

  • Screening Level:

    AEC-Q200

  • Supply Current-Max:

    7 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    45/55 %

ASDAIG-16.000MHZ-X-K-S-T Frequently Asked Questions (FAQs)

  • Abracon recommends a symmetrical PCB layout with a solid ground plane, and keeping the oscillator as close to the microcontroller as possible. A 4-layer PCB with a dedicated ground plane is ideal.
  • Ensure the power supply is stable and within the recommended voltage range. Also, add a 10-100nF decoupling capacitor between VCC and GND close to the oscillator.
  • The ASDAIG-16.000MHZ-X-K-S-T has a frequency stability of ±20ppm over the operating temperature range of -40°C to +85°C, which translates to a maximum frequency deviation of ±320Hz.
  • Yes, the ASDAIG-16.000MHZ-X-K-S-T is designed to withstand vibrations up to 10g peak acceleration, making it suitable for use in industrial and automotive applications.
  • Abracon recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the oscillator's input and output pins to prevent damage from electrostatic discharge.
