ASDAIG-24.000MHZ-C-S-T - ABRACON

Description: OSC XO 24.000MHZ 3.3V CMOS SMD

Download ASDAIG-24.000MHZ-C-S-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

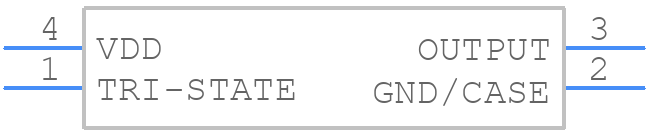

ASDAIG-24.000MHZ-C-S-T - ABRACON - PCB symbol
click to zoom
PCB Footprints
ASDAIG-24.000MHZ-C-S-T - ABRACON PCB footprint - Other - Other - AbraconASDAIG
click to zoom
3D Models
ASDAIG-24.000MHZ-C-S-T - ABRACON - 3D model - Other - AbraconASDAIG
click to zoom

ASDAIG-24.000MHZ-C-S-T Details

  • Manufacturer Part Number:

    ASDAIG-24.000MHZ-C-S-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 4 PIN

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6.5

  • Additional Feature:

    TS-16949; TRI-STATE; ENABLE/DISABLE FUNCTION

  • Fall Time-Max:

    6 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    50%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    4

  • Operating Frequency-Nom:

    24 MHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    CMOS

  • Output Load:

    15 pF

  • Package Body Material:

    CERAMIC

  • Packing Method:

    TR, 7 INCH

  • Physical Dimension:

    2.5mm x 2.0mm x 0.95mm

  • Rise Time-Max:

    6 ns

  • Screening Level:

    AEC-Q200

  • Supply Current-Max:

    7 mA

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    45/55 %

ASDAIG-24.000MHZ-C-S-T Frequently Asked Questions (FAQs)

  • Abracon recommends following the recommended PCB layout guidelines in the datasheet, including using a ground plane, minimizing trace lengths, and avoiding noise sources near the oscillator.
  • The ASDAIG-24.000MHZ-C-S-T has built-in ESD protection and is designed to meet EMI standards. However, it's still important to follow proper handling and installation procedures to prevent damage.
  • The ASDAIG-24.000MHZ-C-S-T has an operating temperature range of -40°C to +85°C, making it suitable for most industrial and commercial applications.
  • Yes, the ASDAIG-24.000MHZ-C-S-T is designed to withstand high-vibration environments and meets the requirements of various industrial and automotive standards.
  • The typical start-up time for the ASDAIG-24.000MHZ-C-S-T is around 2-5 ms, depending on the specific application and circuit design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ASDAIG-24.000MHZ-C-S-T Overview

Use the download button to access the ASDAIG-24.000MHZ-C-S-T schematic symbol, PCB footprint, and 3D model.
