ASDAIG3-27.000MHZ-X-K-T - ABRACON

Description: Oscillator XO 27MHz ±30ppm 15pF HCMOS 60% 1.8V Automotive 4-Pin Mini-CSMD T/R

Download ASDAIG3-27.000MHZ-X-K-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

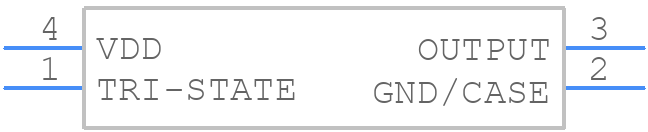

ASDAIG3-27.000MHZ-X-K-T - ABRACON - PCB symbol
click to zoom
PCB Footprints
ASDAIG3-27.000MHZ-X-K-T - ABRACON PCB footprint - Other - Other - AbraconASDAIG
click to zoom
3D Models
ASDAIG3-27.000MHZ-X-K-T - ABRACON - 3D model - Other - AbraconASDAIG
click to zoom

ASDAIG3-27.000MHZ-X-K-T Details

  • Manufacturer Part Number:

    ASDAIG3-27.000MHZ-X-K-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 4 PIN

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6.5

  • Additional Feature:

    TRI-STATE; ENABLE/DISABLE FUNCTION

  • Fall Time-Max:

    8 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    30%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    4

  • Operating Frequency-Nom:

    27 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    HCMOS

  • Output Load:

    15 pF

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    LCC4,.08X.1,62/48

  • Packing Method:

    TR, 7 INCH

  • Physical Dimension:

    2.5mm x 2.0mm x 0.95mm

  • Rise Time-Max:

    8 ns

  • Screening Level:

    AEC-Q200

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    40/60 %

ASDAIG3-27.000MHZ-X-K-T Frequently Asked Questions (FAQs)

  • Abracon recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
  • Yes, ASDAIG3-27.000MHZ-X-K-T is designed to withstand high-vibration environments. Abracon's crystals are built with a rugged design and can operate in environments with vibrations up to 10g.
  • Abracon recommends storing ASDAIG3-27.000MHZ-X-K-T in a dry, cool place with a temperature range of 10°C to 30°C (50°F to 86°F) and humidity below 60%. Avoid exposing the component to direct sunlight, moisture, or extreme temperatures.
  • Yes, ASDAIG3-27.000MHZ-X-K-T is compatible with lead-free soldering processes. Abracon's crystals are designed to meet the requirements of lead-free soldering, ensuring reliable operation in modern electronic assemblies.
  • The typical power consumption of ASDAIG3-27.000MHZ-X-K-T is very low, typically in the range of 1-10 μW. This makes it suitable for battery-powered devices and other low-power applications.
