ASDMB-133.333MHZ-LY-T footprint, schematic symbol and 3D model by ABRACON

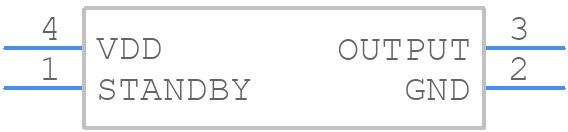

Symbol

PCB Footprints

3D Models

ASDMB-133.333MHZ-LY-T Details

Manufacturer Part Number:
ASDMB-133.333MHZ-LY-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, ULTRA MINIATURE, PLASTIC, QFN-4
Country Of Origin:
Thailand
Factory Lead Time:
8 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6.35
Additional Feature:
TRI-STATE; STANDBY; ENABLE/DISABLE FUNCTION; TR; SUPPLY VOLTAGE 1.8V AND 2.5V ALSO AVAILLABLE
Fall Time-Max:
2 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
10%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
4
Operating Frequency-Nom:
133.333 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
CMOS
Output Load:
15 pF
Package Body Material:
PLASTIC/EPOXY
Physical Dimension:
2.5mm x 2.0mm x 0.85mm
Rise Time-Max:
2 ns
Supply Voltage-Max:
3.3 V
Supply Voltage-Min:
1.8 V
Surface Mount:
YES
Symmetry-Max:
55/45 %
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)

Abracon recommends following the recommended PCB layout guidelines in the application note AN-04, which includes keeping the oscillator away from noise sources, using a solid ground plane, and minimizing trace lengths and widths.
To ensure proper startup, Abracon recommends applying power to the oscillator with a slow rise time (typically 1-10 ms) and ensuring that the power supply is stable and within the recommended operating range.
While the datasheet specifies an operating temperature range of -40°C to +85°C, Abracon recommends derating the oscillator's frequency stability and aging characteristics for operation above +70°C.
Yes, the ASDMB-133.333MHZ-LY-T is designed to operate in high-vibration environments, but Abracon recommends following the recommended mounting and soldering procedures to ensure reliable operation.
Abracon recommends following proper ESD handling procedures, such as using an ESD wrist strap or mat, and ensuring that the oscillator is not exposed to static electricity during handling or assembly.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASDMB-133.333MHZ-LY-T schematic symbol, PCB footprint, and 3D model.
