ASEMB-100.000MHZ-LY-T footprint, schematic symbol and 3D model by ABRACON

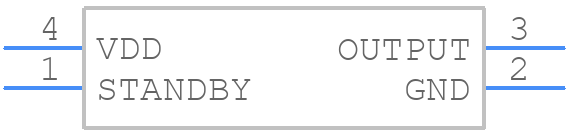

Symbol

PCB Footprints

3D Models

ASEMB-100.000MHZ-LY-T Details

Manufacturer Part Number:
ASEMB-100.000MHZ-LY-T
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, ULTRA MINIATURE, PLASTIC, QFN-4
Country Of Origin:
Thailand
Factory Lead Time:
8 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6
Additional Feature:
TRI-STATE; STANDBY; ENABLE/DISABLE FUNCTION; TR; SUPPLY VOLTAGE 1.8V AND 2.5V ALSO AVAILLABLE
Fall Time-Max:
2 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
10%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
4
Operating Frequency-Nom:
100 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
CMOS
Output Load:
10 KOHM, 15 pF
Package Body Material:
PLASTIC
Physical Dimension:
3.2mm x 2.5mm x 0.85mm
Rise Time-Max:
2 ns
Supply Voltage-Max:
3.3 V
Supply Voltage-Min:
1.8 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Symmetry-Max:
55/45 %
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)

Abracon recommends a soldering temperature profile with a peak temperature of 240°C to 250°C, with a dwell time of 1-2 seconds. This ensures reliable solder joints and minimizes thermal stress on the component.
Yes, ASEMB-100.000MHZ-LY-T is RoHS-compliant, but it can be used in RoHS-exempt applications such as aerospace, defense, or medical devices. However, please verify the specific exemption requirements with Abracon Corporation.
The maximum operating temperature range for ASEMB-100.000MHZ-LY-T is -40°C to +85°C. Operating the component outside this range may affect its performance, reliability, or lifespan.
Handle ASEMB-100.000MHZ-LY-T with care to avoid mechanical stress, scratches, or contamination. Store the components in their original packaging, away from direct sunlight, moisture, and extreme temperatures.
ASEMB-100.000MHZ-LY-T is designed to withstand moderate vibration and shock. However, for high-vibration or high-shock applications, please consult with Abracon Corporation's technical support to ensure the component's reliability and performance.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASEMB-100.000MHZ-LY-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASEMB, or try a keyword search, such as XO
