ASEMDHC-L-R-T - ABRACON

Description: Standard Clock Oscillators MEMS OSC XO 2.25V-3.6V 14VFQFN

Download ASEMDHC-L-R-T Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ASEMDHC-L-R-T model

Email notifications will be applied after download.

Send part feedback

Symbol

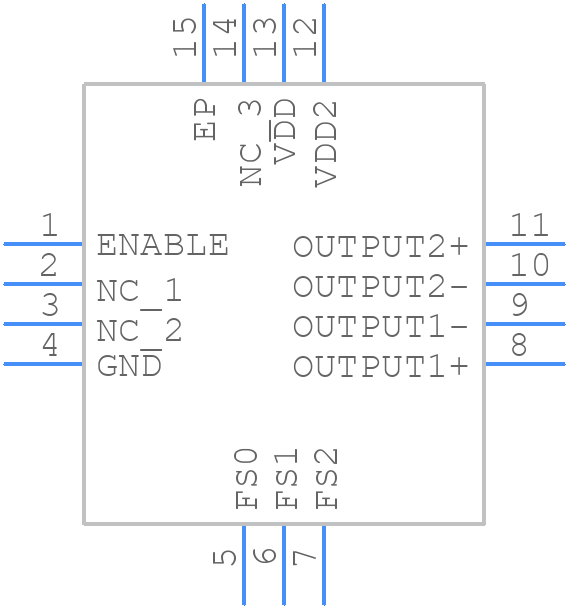

ASEMDHC-L-R-T - ABRACON - PCB symbol

PCB Footprints

ASEMDHC-L-R-T - ABRACON PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 14-QFN-(2.5x3.2)

3D Models

ASEMDHC-L-R-T - ABRACON - 3D model - Quad Flat No-Lead - 14-QFN-(2.5x3.2)

Datasheet Download Datasheet
Stock & Prices Price & Stock for ASEMDHC-L-R-T
Part Number ASEMDHC-L-R-T
Manufacturer ABRACON
Pin Count 15
Part Category Crystal or Oscillator
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 14-QFN-(2.5x3.2)
Released Date Apr 5, 2023
Last Modified Date May 2, 2023 9:54 AM UTC
Pinout / Pin List Click Here (Member Only)

ASEMDHC-L-R-T Details

Manufacturer Part Number:
ASEMDHC-L-R-T
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, ULTRA MINIATURE PACKAGE-14
Manufacturer:
Abracon Corporation
YTEOL:
6

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ASEMDHC-L-R-T Overview

Use the download button to access the ASEMDHC-L-R-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASEMD, or try a keyword search, such as XO
