Abracon recommends following a 4-layer PCB stack-up with a solid ground plane on the bottom layer, and using a microstrip or stripline configuration for the transmission lines. Additionally, keeping the signal traces short and away from noise sources is crucial for optimal performance.
Abracon recommends following the recommended soldering profile, using a solder with a melting point below 260°C, and ensuring the component is properly aligned on the PCB. Avoiding excessive heat, vibration, or mechanical stress during the reflow process is also crucial to prevent damage.
The ASEMDHC-L-R-T3 is rated for operation from -40°C to +85°C, but it's essential to note that the device's performance may degrade at extreme temperatures. Consult the datasheet for specific temperature-related performance characteristics.
While the ASEMDHC-L-R-T3 is designed to be rugged, it's essential to consult Abracon's vibration and shock testing data to ensure the device meets the specific requirements of your application. Additional mechanical support or mounting may be necessary in high-vibration or high-shock environments.
Abracon recommends following a systematic troubleshooting approach, starting with verifying the PCB layout, signal integrity, and power supply quality. Consult the datasheet and application notes for specific guidance on troubleshooting common issues. If necessary, contact Abracon's technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ASEMDHC-L-R-T3 Overview

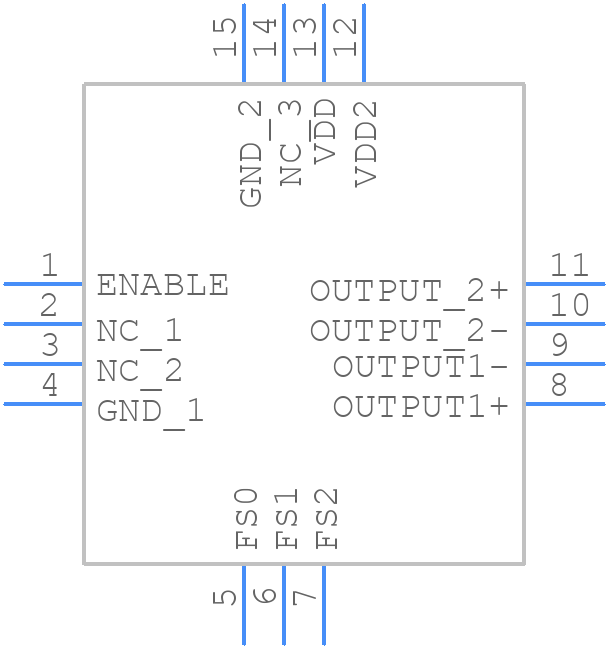

Use the download button to access the ASEMDHC-L-R-T3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASEMD,
or try a keyword search, such as XO
