ASEMDHC-LR - ABRACON

Description: Clock Oscillator 10MHz to 460MHz 3.3V 2pF 14-Pin SMD Tube

Download ASEMDHC-LR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ASEMDHC-LR model

Email notifications will be applied after download.

Send part feedback

Symbol

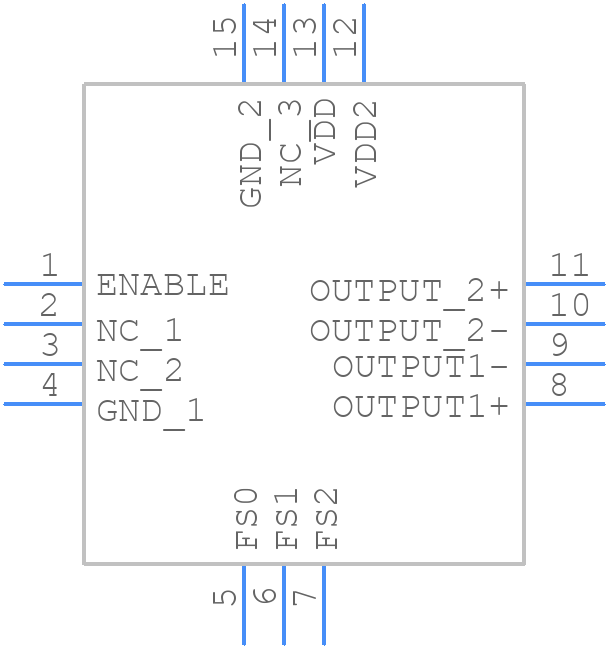

ASEMDHC-LR - ABRACON - PCB symbol

PCB Footprints

ASEMDHC-LR - ABRACON PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ASEMDHC-LRsss

3D Models

ASEMDHC-LR - ABRACON - 3D model - Quad Flat No-Lead - ASEMDHC-LRsss

Datasheet Download Datasheet
Stock & Prices Price & Stock for ASEMDHC-LR
Part Number ASEMDHC-LR
Manufacturer ABRACON
Pin Count 15
Part Category Crystal or Oscillator
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - ASEMDHC-LRsss
Released Date Apr 5, 2023
Last Modified Date May 2, 2023 9:54 AM UTC
Pinout / Pin List Click Here (Member Only)

ASEMDHC-LR Details

Manufacturer Part Number:
ASEMDHC-LR
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Unknown
Manufacturer:
Abracon Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ASEMDHC-LR Overview

Use the download button to access the ASEMDHC-LR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASEMD, or try a keyword search, such as XO
