ASEMDHLV14-L - ABRACON

Description: 3.3V CMOS Compatible 3.2 x 2.5mm SMD Crystal Oscillato

Download ASEMDHLV14-L Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ASEMDHLV14-L model

Email notifications will be applied after download.

Send part feedback

Symbol

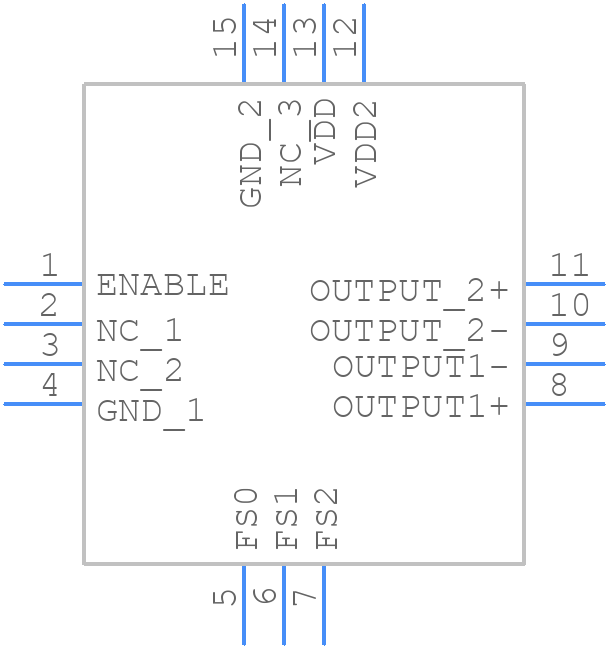

ASEMDHLV14-L - ABRACON - PCB symbol

PCB Footprints

ASEMDHLV14-L - ABRACON PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 14-VFQFN Exposed Pad _2023

3D Models

ASEMDHLV14-L - ABRACON - 3D model - Quad Flat No-Lead - 14-VFQFN Exposed Pad _2023

Datasheet Download Datasheet
Stock & Prices Price & Stock for ASEMDHLV14-L
Part Number ASEMDHLV14-L
Manufacturer ABRACON
Pin Count 15
Part Category Crystal or Oscillator
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 14-VFQFN Exposed Pad _2023
Released Date Apr 6, 2023
Last Modified Date May 2, 2023 9:54 AM UTC
