ASEMPLV-100.000MHZ-LR-T footprint, schematic symbol and 3D model by ABRACON

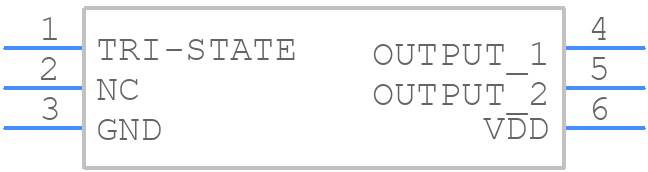

Symbol

PCB Footprints

3D Models

ASEMPLV-100.000MHZ-LR-T Details

Manufacturer Part Number:
ASEMPLV-100.000MHZ-LR-T
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
QFN, 6 PIN
ECCN Code:
EAR99
Factory Lead Time:
8 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6
Additional Feature:
DIFFERENTIAL OUTPUT: STANDBY; TRI-STATE; ENABLE/DISABLE FUNCTION; TR, 7 INCH
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
25%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
6
Operating Frequency-Nom:
100 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
LVDS
Output Load:
100 OHM
Package Body Material:
PLASTIC
Physical Dimension:
3.2mm x 2.5mm x 0.85mm
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
2.25 V
Surface Mount:
YES
Symmetry-Max:
52/48 %
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)

Abracon recommends storing the device in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to 85°C and humidity below 80%.
Yes, the ASEMPLV-100.000MHZ-LR-T is designed to withstand vibrations up to 20G, making it suitable for use in high-vibration environments.
The thermal resistance of the ASEMPLV-100.000MHZ-LR-T is approximately 30°C/W, which is relatively low, making it suitable for high-power applications.
Yes, the ASEMPLV-100.000MHZ-LR-T is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant applications.
The operating temperature range of the ASEMPLV-100.000MHZ-LR-T is -40°C to 85°C, making it suitable for use in a wide range of applications.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASEMPLV-100.000MHZ-LR-T schematic symbol, PCB footprint, and 3D model.
