ASEMPLV-100.000MHZ-LR footprint, schematic symbol and 3D model by ABRACON

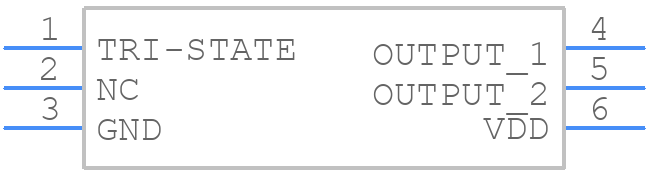

Symbol

PCB Footprints

3D Models

ASEMPLV-100.000MHZ-LR Details

Manufacturer Part Number:
ASEMPLV-100.000MHZ-LR
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
QFN, 6 PIN
Manufacturer:
Abracon Corporation
YTEOL:
6
Additional Feature:
DIFFERENTIAL OUTPUT: STANDBY; TRI-STATE; ENABLE/DISABLE FUNCTION; TUBE
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
25%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
6
Operating Frequency-Max:
460 MHz
Operating Frequency-Min:
2.3 MHz
Operating Frequency-Nom:
100 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
LVDS
Output Load:
100 OHM
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
SOLCC6,.1,40
Physical Dimension:
3.2mm x 2.5mm x 0.85mm
Qualification Status:
Not Qualified
Supply Current-Max:
32 mA
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
2.25 V
Surface Mount:
YES
Symmetry-Max:
52/48 %
Technology:
CMOS
Terminal Finish:
NICKEL PALLADIUM GOLD

Abracon recommends following a low-ESR, low-inductance PCB layout with a solid ground plane, and placing the crystal near the microcontroller's oscillator pins to minimize noise and ensure optimal performance.
While the ASEMPLV-100.000MHZ-LR is rated for operation up to 125°C, Abracon recommends derating the frequency tolerance and stability specifications for temperatures above 85°C. Consult Abracon's application notes for more information.
Abracon recommends following proper handling and mounting procedures to minimize mechanical stress and vibration. Use a shock-absorbing material, such as a silicone-based adhesive, to attach the crystal to the PCB, and avoid exposing the crystal to excessive mechanical stress or vibration during assembly and operation.
Abracon recommends a drive level of 1-10 μW for optimal performance and to prevent overdriving the crystal, which can lead to reduced lifespan or damage.
While the ASEMPLV-100.000MHZ-LR is designed to operate in a variety of environments, Abracon recommends taking precautions to prevent moisture ingress, such as using a conformal coating or potting the crystal in a moisture-resistant material.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASEMPLV-100.000MHZ-LR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASEMP, or try a keyword search, such as XO

Showing 0 results

Image	Part Number	Model
	ASEMPLV-100.000MHZ-LR-T Abracon Corporation LVDS Output Clock Oscillator, 100MHz Nom
	ASEMPLV-100.000MHZ-R Abracon Corporation LVDS Output Clock Oscillator, 100MHz Nom
	ASEMPLV-100.000MHZ-R-T5 Abracon Corporation LVDS Output Clock Oscillator, 100MHz Nom
	ASEMPLV-100.000MHZ-R-T Abracon Corporation LVDS Output Clock Oscillator, 100MHz Nom
	ASEMPLV-100.000MHZ-LR-T3 Abracon Corporation LVDS Output Clock Oscillator, 100MHz Nom
For a full list of alternate parts for ASEMPLV-100.000MHZ-LR, check out Findchips.com
