ASEMPLV-106.250MHZ-XY-PD - ABRACON

Description: MEMS Clock Oscillator - 106.250MHZ (+/-) 10ppm - LVDS Output - Standby - SMD - -40°C to +105°C

Download ASEMPLV-106.250MHZ-XY-PD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

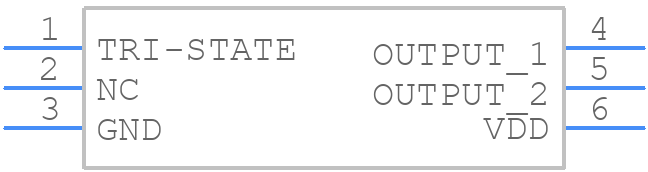

Symbol
ASEMPLV-106.250MHZ-XY-PD - ABRACON - PCB symbol
click to zoom
PCB Footprints
ASEMPLV-106.250MHZ-XY-PD - ABRACON PCB footprint - Other - Other - ASEMPC
click to zoom
3D Models
ASEMPLV-106.250MHZ-XY-PD - ABRACON - 3D model - Other - ASEMPC
click to zoom

ASEMPLV-106.250MHZ-XY-PD Details

  • Manufacturer Part Number:

    ASEMPLV-106.250MHZ-XY-PD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Thailand

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    0

  • Additional Feature:

    POWER DOWN; ENABLE/DISABLE FUNCTION; DIFFERENTIAL OUTPUT

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    10%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    106.25 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVDS

  • Output Load:

    100 OHM

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    DILCC6,.1,41

  • Physical Dimension:

    3.2mm x 2.5mm x 0.85mm

  • Supply Current-Max:

    32 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.25 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    52/48 %

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)
